10T/H Cantaloupe Fruit Juice Production Line CFM-H-10T/H Customized Dimension

10T/H Cantaloupe Fruit Juice Production Line CFM-H-10T/H Customized Dimension

10T/H Cantaloupe Fruit Juice Production Line CFM-H-10T/H Customized Dimension

Product Details:

Place of Origin: Jiangsu
Brand Name: CFM
Certification: CE IS9001
Model Number: CFM-H-10T/H

Payment & Shipping Terms:

Minimum Order Quantity: 1/Unit
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 65 Work Days
Supply Ability: 1/Piece+Days
Contact Now
Detailed Product Description
Condition: New Power(W): According To The Order
Place Of Origin:: Jiangsu,China (Mainland) Type: Juice Production Line
Dimension(L*W*H): Customized Voltage: 220V/380V

10T/H Cantaloupe juice production line/equipment


The nutrition value of cantaloupe

    Cantaloupe contains 4.6% - 15.8% sugar, 2.6% - 6.7% cellulose, malic acid, pectin, vitamin A, B, C, niacin and calcium, phosphorus, iron and other elements. The iron content is two or three times more than chicken and 17 times higher than milk. Cantaloupe contains potassium, which can protect the body, maintain normal heart rate and blood pressure, and can effectively prevent coronary heart disease. At the same time, potassium can prevent muscle spasm and make people recover from injury as soon as possible.


Cantaloupe processing line quality assurance: Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of the cantaloupe processing production line are basically imported or domestic first-line brands: so the quality and equipment stability is relatively high, and the Philippine mechanical after-sales service has always been better in the industry.


1.The motor of Chenfei’s processing machine is basically ABB, Siemens and Jiangsu Dazhong.
2.Stainless steel is from Zhangjiagang Pohang Stainless Steel Co., Ltd. (joint venture)
3.The water pump is from Nanfang and the centrifugal pump is from Yuanan.
4.Electrical cabinet and PLC control system: Siemens PLC touch screen, switch and AC contactor electrical protection is Schneider, intermediate relays are Honeywell.

5.The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables.


Cantaloup processing line technology advantages:

    The preparation method of the cantaloupe juice processing production line processing production line comprises the following steps:
* Fresh cantaloupe is washed by bubble washing machine and air-dried;
*Crushing the cantaloupe after air drying, and then screwing it to the juice after crushing;            filtering and then filtering into the temporary storage tank;
* The juice through the UHT instant sterilization machine, to maximize the color and taste of       the juice;
*Store the juice aseptic bag in an aseptic filling machine for 1-2 years (normal temperature).


Production line core equipment parameters:


No Equipment Name Parameters Product Description

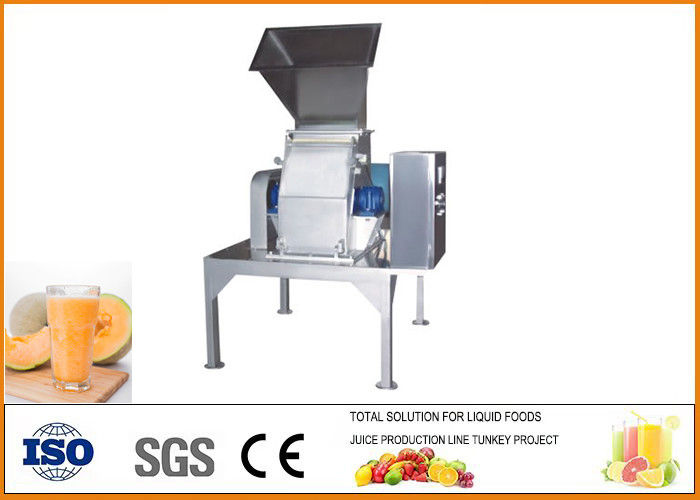

1 Crusher

Capacity: 10T/H

Motor power: 11KW

Hammer-type structure, the part in contact with the material is high-quality SUS304 stainless steel, and the crushing granularity is adjustable.
2 Belt juicer Rated processing capacity 10,000KG/H
Filter belt line speed: 0.1 m / sec
Main drive speed: 0-5 rpm
Cloth thickness: 25~30 mm
Compressed air consumption: 120 l / min
Compressed air pressure: 0.7 MPa
Feed inlet height: 1920 mm
Squeeze material: polyester (GKD, Germany)
Host size: 4100×1850×2550mm
Motor power: 22kw
German Nord reducer, southern high pressure recoil pump, Siemens PLC, touch screen control
3 UHT sterilization machine Production capacity 6 tons
Model CFI1-LG-6T
Power (KW) 9.7
Dimensions (m x m x m) 6.5x2.4x2.2
Steam consumption (kg/h) 720
The ultra-high temperature sterilization machine can simultaneously heat, heat, heat recover and cool the materials. In the preheating section and the sterilization section, the heat can be fully recovered. This sterilizing device uses a multi-stage heating, sterilizing and cooling of liquid or slurry materials to improve the efficiency of heat energy use.
4 Double-head sterile large bag filling machine Equipment Name: Double-head sterile large bag filling machine
Rated capacity: 6000 KG/H
Filling range: 1 ~ 220L
Filling energy: 220L 40 bags / hour
Filling error: ±0.5% (flow meter)
Compressed air: 40M3/Hour (0.6Mpa)
Steam consumption: 40Kg (≥4kg/cm2)
Lift: screw type
Dimensions: 3200x2100x2600mm
*The aseptic filling machine is directly connected to the sterilizer, and the UHT-sterilized product can be directly filled into a sterile bag. The aseptic bag is an aluminum-plastic composite multi-layer bag that effectively isolates sunlight and oxygen; maximizing product quality.
*The temperature adjustment system automatically adjusts the temperature of the filling chamber, and uses the steam injection method to sterilize the bag mouth and the filling chamber.
*The flow weighing system is used to control the quantitative filling, and the filling is more precise;
*Mirror welding technology ensures smooth and flat welds without leaving a sanitary corner;
*Product valves and moving parts of the filling head are protected by a steam barrier.
*The filling chamber is steam sterilized;
*The programmable controller is used to realize automatic operation of the device.



Flow chart:


Fresh Cantaloupe - Washing - Sorting &  Elevating -- Crushing - Screw Conveying- Extracting - Filtering - Buffer storage - UHT Sterilization - Aseptic Filling


Question and answer:


1. Any guarantee of the machines?
-YES, one-year free maintenance.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.

Our Services Pre-Sales Service

1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.


After-Sales Service

1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
