Coustom Pomegranate Juice Production Line 5T / H ISO9001 Certificate

Coustom Pomegranate Juice Production Line 5T / H ISO9001 Certificate

    • Coustom Pomegranate Juice Production Line 5T / H ISO9001 Certificate
    • Coustom Pomegranate Juice Production Line 5T / H ISO9001 Certificate
  • Coustom Pomegranate Juice Production Line 5T / H ISO9001 Certificate

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: CFM
    Certification: CE IS9001
    Model Number: CFM-P-3T/H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1/Unit
    Price: negotiable
    Packaging Details: Plastic film+wooden Case
    Delivery Time: 150 Work Days
    Supply Ability: 1/Piece+Days
    Contact Now
    Detailed Product Description
    Name: Pomegranate Juice Production Line Capacity: 2T /H
    Certificate: CE,ISO9001 Size: Depends On The Size Of Each Machine
    Feature: Easy Operation Voltage: Coustom Made
    High Light:

    fruit juice manufacturing plant


    fruit juice processing line

    Pomegranate juice production line 3T / H,fruit juice processing line


    The nutritional value of pomegranate:

        Pomegranate fruit is like a red gem. The fruit is sour, sweet and juicy. It has high nutritional value, rich in fruit sugar, high-quality protein and easy to absorb fat. It can supplement human energy and calories, but it does not increase the burden on the body. The fruit contains vitamin C and B vitamins, organic acids, sugars, proteins, fats and minerals such as calcium, phosphorus and potassium, which can supplement trace elements and nutrients that are missing in the human body. It has the functions of clearing away heat, detoxifying, calming liver, enriching blood, promoting blood circulation and stopping diarrhea. It is suitable for patients with jaundice hepatitis, asthma and chronic diarrhea.


    Coustom Pomegranate Juice Production Line 5T / H ISO9001 Certificate


    Pomegranate processing line quality assurance: Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of the pomegranate processing production line are basically imported or domestic first-line brands: so the quality and equipment stability is relatively high, and the  mechanical after-sales service has always been better in the industry.


    1.The motor of Chenfei’s processing machine is basically ABB, Siemens and Jiangsu Dazhong;
    2.Stainless steel is from Zhangjiagang Pohang Stainless Steel Co., Ltd. (joint venture);
    3.The water pump is from Nanfang and the centrifugal pump is from Yuanan;
    4.Electrical cabinet and PLC control system: Siemens PLC touch screen, switch and AC contactor electrical protection is Schneider, intermediate relays are Honeywell;

    5.The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables.


    Pomegranate processing line technology advantages:

        The preparation method of the pomegranate juice processing production line processing production line comprises the following steps:

    1. Sorting: Elevating the pomegranate to the washing machine for cleaning;
    2. Washing: The surface of the pomegranate will be cleaned by spraying with a brush to              remove impurities such as dust on the surface;
    3. Transporting the split: the pomegranate will be split by the pair of rollers;
    4. Sorting: Pick out the bad pomegranate after the splitting;
    5. Elevating them into the equipment of picking equipment, separating the peel, fruit and fruit sac;
    6. Rotation separation: Separate the fruit and fruit capsules to ensure the purity of the fruit;
    7. Juice extraction: Juice extraction by air bag juicer reduces the amount of material and air             contact;
    8. Temporary storage: the freshly squeezed pomegranate juice is temporarily stored in a              sterile tank;
    9.UHT Instant Sterilization: Maintains the color and texture of the juice to the maximum extent     through instant sterilization;
    10. Aseptic filling: store the juice aseptic bag through an aseptic filling machine for 1-2 years         (normal temperature).

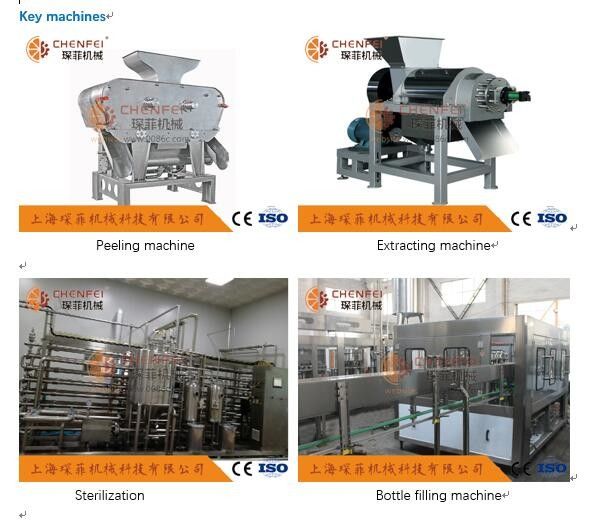

    Production line core equipment parameters:


    No Equipment Name Parameters Product Description
    1 Pomegranate automatic peeling machine

    1.Main motor :2.2kw
    2. Upper crushing motor: 1.5kw
    3. Under the broken motor :1.2kw
    4. Screening motor: 0.75kw
    5. Screw pump motor: 3kw
    6. Dimensions :2100x800x204

    It is used for the separation of pomegranate. The working principle is that the pomegranate enters the upper crushing device from the feeding hopper and is separated by the combination of the separating shaft and the rotating sieve.
    2 Air bag juicer    1. PLC control, preset 6 kinds of working cycles, working pressure and pressing time can be adjusted as needed;
    2. Touch screen operation, clear and intuitive, easy to understand;
    3. Imported PVC food grade cord airbags;
    4. Imported compressor and vacuum pump, fast and stable for inflation and exhaust;
    5. Reducer energy consumption is low, low noise
    3 UHT sterilization machine Capacity :2 tons
    Model :CFI1-LG-2T
    Power (KW): 2.5
    Dimensions (m x m x m): 4.5x2.2x1.9
    Steam consumption (kg/h) :240
    The ultra-high temperature sterilization machine can simultaneously heat, heat, heat recover and cool the materials. In the preheating section and the sterilization section, the heat can be fully recovered. This sterilizing device uses a multi-stage heating, sterilizing and cooling of liquid or slurry materials to improve the efficiency of heat energy use.
    4 Single head aseptic bag filling machine Equipment Name:Single-head sterile large bag filling machine
    Rated capacity: 3000KG/H
    Filling range: 1 ~ 220L
    Filling energy: 220L 20 bags / hour
    Filling error: ±0.5% (flow meter)
    Compressed air: 20M3/Hour (0.6Mpa)
    Steam consumption: 20Kg (≥4kg/cm2)
    Lift: Screw type
    Dimensions: 2200x2100x2600mm
    *The aseptic filling machine is directly connected to the sterilizer, and the UHT-sterilized product can be directly filled into a sterile bag. The aseptic bag is an aluminum-plastic composite multi-layer bag that effectively isolates sunlight and oxygen; maximizing product quality.
    *The temperature adjustment system automatically adjusts the temperature of the filling chamber, and uses the steam injection method to sterilize the bag mouth and the filling chamber.
    *The flow weighing system is used to control the quantitative filling, and the filling is more precise;
    *Mirror welding technology ensures smooth and flat welds without leaving a sanitary corner;
    *Product valves and moving parts of the filling head are protected by a steam barrier.
    *The filling chamber is steam sterilized;
    *The programmable controller is used to realize automatic operation of the device.



    Flow chart:


    Fresh Pomegranate - Elevating - Bubble washing - Brush washing - Rolling sorting - Peeling & Seeding - Filtration - Airbag Pressing - Buffer Tanks - UHT Sterilization - Aseptic Filling


    Question and answer:


    1. Any guarantee of the machines?
    -YES, one-year free maintenance and life time paid service.
    2. Can you do the OEM design for customers?
    -YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
    3. What is the package of the machines?
    -The machines will be wrapped with plastic film and put in wooden cases.
    4. Shipping port?
    -Shanghai.(Other ports available if required)
    5. Transportation
    -Shipping by sea. Air available if required by customer.

    Our Services Pre-Sales Service

    1.* Inquiry and consulting support.
    2.* Sample testing support.
    3.* Visit our Factory.


    After-Sales Service

    1.* Training how to install and use the machines.
    2.* Engineers available to provide the technique help if necessary.
