| Place of Origin: | China (mainland) |
| Brand Name: | CFM |
| Certification: | ISO9001 / CE |
| Model Number: | CFM-B-401 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plastic film and wooden case |
| Delivery Time: | 35 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 12 piece per year |
| Material: | SUS304 | Color: | Sliver |
|---|---|---|---|
| Voltage: | 220V / 380V | Power(W): | 1.5 KW |
| Warranty: | 1 Year | Package: | Plastic Film And Wooden Case |
| Filling Energy: | 10L 100 Bags / Hour | Equipment Name: | Single Head BIB Filling Machine |
| High Light: | aseptic filling line,aseptic filling equipment |
||

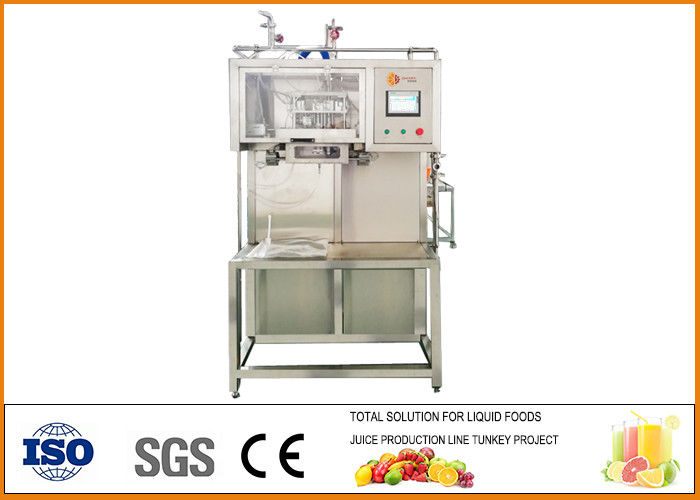

1L-30L SS304 High quality single head BIB hot filling machine
Product introduction
The BIB filling machine consists of a flow metering or weighing metering system, a man-machine interface and a PLC control system. The robot automatically completes the operations of opening, filling, glanding, etc., so that there is no pollution and the purpose of filling is achieved.
Scope of application
It is suitable for aseptic packaging of fluid foods such as raw fruit juice, concentrated juice, jam, fruit granules (fruit granules) aseptic filling, beverage puree, syrup, dairy products, pharmaceutical or other concentrated products.
Equipment summary
1. The product is controlled by human-machine interface and PLC, which makes the operation convenient and intuitive, and has self-detection and protection functions;
2, metering system: flow meter measurement, measuring parts brand using Germany E + H metering accuracy, stable filling volume error ≤ 0.5%);
3, the whole machine uses SUS304 or 316L, clean and beautiful, in line with food hygiene requirements;
4. Reliable bag mouth design to ensure smooth operation of the equipment and not to hurt the bag mouth;
5, can fill 1L-30L sterile bag;
Property description
| Equipment Name | Single head BIB filling machine |
| Filling energy | 10L 100 bags / hour |
| Filling accuracy |
filling volume ±1% (coconut particles 8 mm, particle content 70%) |
| Bag mouth standard |
1 inch bag mouth (designed according to sample bag) |
| Compressed air | 6-8bar 18NL/min |
| Measurement method | weighing measurement |
Product Details
Question and answer
1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.
Our Services Pre-Sales Service
1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.
After-Sales Service
1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
