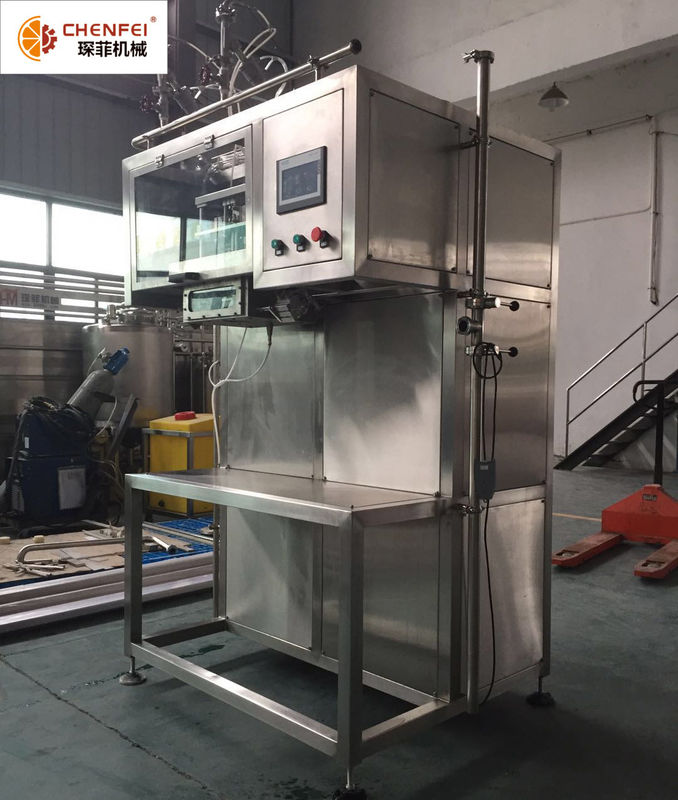

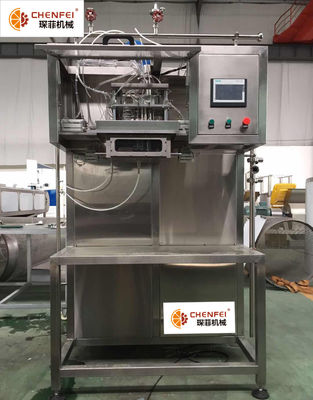

Single Head BIB Aseptic Filling Machine 2L / Bag 600 L / Hour 1.5 KW Power

Single Head BIB Aseptic Filling Machine 2L / Bag 600 L / Hour 1.5 KW Power

    • Single Head BIB Aseptic Filling Machine 2L / Bag 600 L / Hour 1.5 KW Power
    • Single Head BIB Aseptic Filling Machine 2L / Bag 600 L / Hour 1.5 KW Power
  • Single Head BIB Aseptic Filling Machine 2L / Bag 600 L / Hour 1.5 KW Power

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: CFM
    Certification: ISO9001
    Model Number: CFM-B-402

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiable
    Packaging Details: Plastic film and wooden case
    Delivery Time: 35 days
    Payment Terms: T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 12 piece per year
    Contact Now
    Detailed Product Description
    Material: SUS304 Color: Sliver
    Voltage: 220V / 380V Power(W): 1.5 KW
    Warranty: 1 Year Package: Plastic Film And Wooden Case
    Filling Energy: 300bags / Hour Equipment Name: Single Head BIB Aseptic Filling Machine
    High Light:

    aseptic filling equipment

    ,

    aseptic bag filling machine



    Single Head BIB Aseptic Filling Machine 2L/bag and 600 L/Hour



    Single Head BIB Aseptic Filling Machine 2L / Bag 600 L / Hour 1.5 KW Power





    Product introduction

          We adopt the Italian technique and design it for the filling volume of 1-30L especially ourselves. It is full automatically, high fill efficiency and easy operation by one person. The whole machine is made of the high quality of 304L/316L, the pipe arrangement is quite reasonable without dead corner. The circulated steam and compressed air will be discharged from the corresponding pipes.



    Scope of application

    Suitable for filling viscous or non-viscous fluids such as fruit juice, concentrated juice, jam, fruit granules (fruit granules), aseptic filling, beverage puree, syrup, dairy products, pharmaceutical or other concentrated products. Filling and filling of bacteria. It is widely used in the aseptic packaging of fluid foods such as juice, pulp and jam.



    Equipment summary

         1. The product is controlled by human-machine interface and PLC, which makes the operation convenient and intuitive, and has self-detection and protection functions.

         2.metering system: flow meter measurement, measuring parts brand using Germany E + H metering accuracy, stable filling volume error ≤ 0.5%).

         3.the whole machine uses SUS304 or 316L, clean and beautiful, in line with food hygiene requirements

         4. moving parts plus steam barrier and sealed sterile room to ensure its sterility.

         5,.The filling chamber is uniquely designed to avoid condensation and water leakage.

         6.reliable bag mouth design, to ensure smooth operation of the equipment, does not hurt the bag mouth.



    Property description

    Equipment Name Single head BIB aseptic filling machine
    Filling accuracy filling volume ±0.5%
    Bag mouth standard 1 inch bag mouth (designed according to sample bag)
    Compressed air

    6-8bar 18NL/min

    Steam consumption 20kg/h
    Steam pressure 0.2-0.3mpa
    Metering method flow meter





    Product Details



    Single Head BIB Aseptic Filling Machine 2L / Bag 600 L / Hour 1.5 KW Power





    Question and answer

    1. Any guarantee of the machines?
    -YES, one-year free maintenance and life time paid service.
    2. Can you do the OEM design for customers?
    -YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
    3. What is the package of the machines?
    -The machines will be wrapped with plastic film and put in wooden cases.
    4. Shipping port?
    -Shanghai.(Other ports available if required)
    5. Transportation
    -Shipping by sea. Air available if required by customer.



    Our Services Pre-Sales Service

    1.* Inquiry and consulting support.
    2.* Sample testing support.
    3.* Visit our Factory.


    After-Sales Service
    1.* Training how to install and use the machines.
    2.* Engineers available to provide the technique help if necessary.
