SS304 automatic Aseptic juice and jam Filling Machine 5L 240 Bags /h

SS304 automatic Aseptic juice and jam Filling Machine 5L 240 Bags /h

SS304 automatic Aseptic juice and jam Filling Machine 5L 240 Bags /h

Product Details:

Place of Origin: China (mainland)
Brand Name: CFM
Certification: ISO9001 / CE
Model Number: CFM-B-415-415

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Plastic film and wooden case
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 12 piece per year
Contact Now
Detailed Product Description
Material: SUS304 Voltage: 220V / 380V
Power(W): 1.5 KW Package: Plastic Film And Wooden Case
Filling Energy: 5L 240bags / Hour Equipment Name: Automatic BIB Aseptic Filling Machine
Manufacturer History: More Than 12 Years Filling Type: Juice And Jam
High Light:

aseptic filling equipment

,

aseptic bag filling machine

 automatic juice and jam aseptic BIB filling machine

Equipment summary

      1. The product is controlled by human-machine interface and PLC, which makes the operation convenient and intuitive, and has self-detection and protection functions.

      2.Metering system: flow meter measurement, measuring parts brand using Germany E + H metering accuracy, stable filling volume error ≤ 0.5%).

      3.The whole machine uses SUS304 or 316L, clean and beautiful, in line with food hygiene requirements.

      4.The filling head is equipped with a capping detection system, which can only be filled after the sterile cap is confirmed to be unplugged.

      5.Can automatically fill 1L-25L sterile bag.



Equipment features

      Our automatic BIB filling machine can also be used for automatic filling (one inch mouth) of 1L, 2L, 3L, 5L, 10L, 25L aseptic bags of different specifications. It is the only equipment on the market that realizes multi-purpose.



Technical parameters

Equipment Name Automatic BIB aseptic filling machine
Filling capacity 5L    240bags / hour
Filling accuracy filling volume ±0.5%
Bag mouth standard 1 inch bag mouth (designed according to sample bag)
Compressed air 6-8bar 1.5m3/H
Steam consumption 60kg/h
Vapor pressure 2-3bar
Power requirements 220V AC 50HZ 1.5KW



Product detail

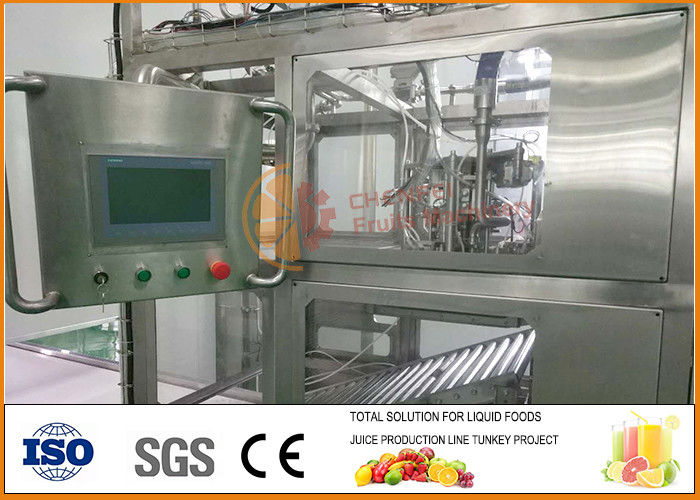

   SS304 automatic Aseptic juice and jam Filling Machine 5L 240 Bags /h

Question and answer

1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.



Our Services Pre-Sales Service

1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.


After-Sales Service
1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
