Tomato Tin Canned Beverage Manufacturing Equipment 15 - 20 Cans / Minute

Tomato Tin Canned Beverage Manufacturing Equipment 15 - 20 Cans / Minute

Tomato Tin Canned Beverage Manufacturing Equipment 15 - 20 Cans / Minute

Product Details:

Place of Origin: China (mainland)
Brand Name: CFM
Certification: CE/ISO9001
Model Number: CFM-B-06-6000

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 90 Work Days
Payment Terms: T/T, D/A, D/P, T/T, Western Union
Supply Ability: 12 sets per year
Contact Now
Detailed Product Description
Weight: Custom Made Type: Tomato Canned Rice Production Line
Specification: 15-20 Cans/minute Bottle Type: Cans
Automatic Grade: Automatic Feature: Energy Saving
Material: Ss304 Color: Silver
High Light:

beverage production line


beverage processing equipment

15-20 cans/minute cans of tomato canned rice production line

 Tomato canned  processing line quality assurance:

  1. The motor of Chenfei’s processing machine is basically ABB, Siemens and Jiangsu Dazhong.
  2. Stainless steel is from Zhangjiagang Pohang Stainless Steel Co., Ltd. (joint venture)
  3. The water pump is from Nanfang and the centrifugal pump is from Yuanan.
  4. Electrical cabinet and PLC control system: Siemens PLC touch screen, switch and AC contactor electrical protection is Schneider, intermediate relays are Honeywell.
  5. The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables;

​​Technical advantage
  Taking into account the actual requirements of the customer's factory and the project equipment, the installation and positioning of the production line equipment adopts segmentation positioning, modular PLC automatic control, design layout according to the size and characteristics of the plant, ensuring the rationality of on-site construction and operation, and good On-site working environment; realizes compact layout of workshop equipment and wide space, achieving the economic and aesthetic design effect of modern production workshop;
   Energy-saving design and recycling of thermal energy are considered in all production steps, which greatly reduces energy consumption and saves more than 35% of energy in the same industry. At the same time, the cleaning water in the pre-treatment process considers a certain recycling; Waste such as slag is directly excluded from the production workshop through the screw conveyor system.
   Strictly follow the automation and standardization process to prevent product quality instability caused by human intervention. In each operation, the rationality and fluency of material operation are fully considered. Properly amplify the margin on the basis of meeting the contracted output, and maximize the function and function of each device, so as not to waste one device and not take a step.
   The pipeline process is reasonable, the equipment configuration is high-end and practical, and the utilization rate is extremely high. At the same time, considering the maximum cost savings for customers, it is the basic design concept of the company.

Flow Chart:

1.End Product — Pump — Blending System {RO Water/Sugar soluble system}— Filltering — Homogenizer — Tinplate Filling

2.End Product — Pump — Blending System {RO Water/Sugar soluble system}— Filltering — Homogenizer — Cans Filling

3.End Product — Pump — Blending System {RO Water/Sugar soluble system}— Filltering — Homogenizer — Corner Spout Bag Filling

4.End Product — Pump — Blending System {RO Water/Sugar soluble system}— Filltering — Homogenizer — Sugar Soluble System

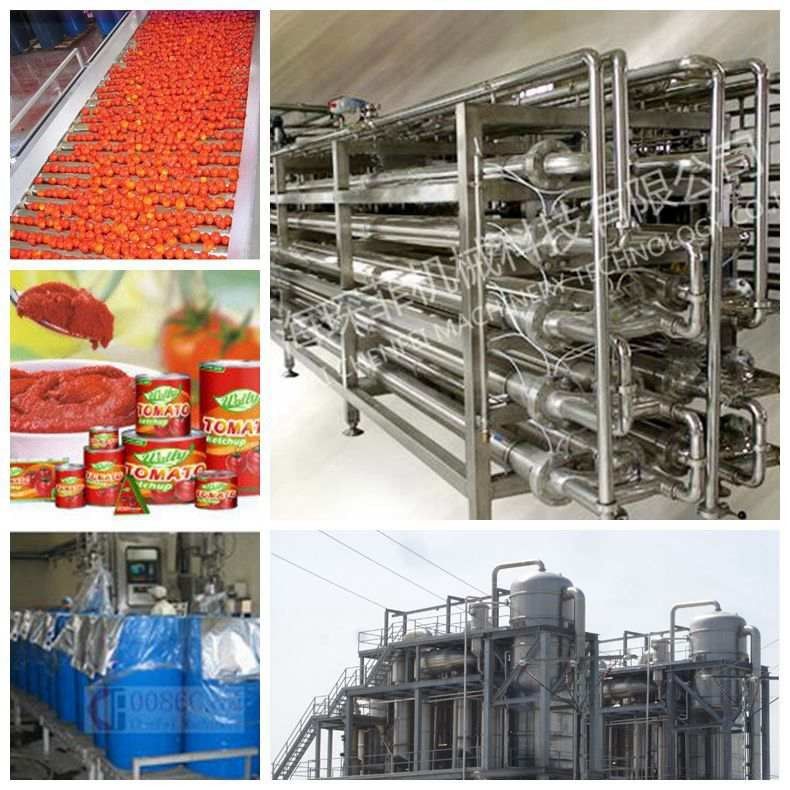

Tomato Tin Canned Beverage Manufacturing Equipment 15 - 20 Cans / Minute

Part of the filling and packaging line design
(1) Packaging, production capacity, etc.:
Packed form: three tinplate tins, production capacity, filling capacity and other requirements are as follows:
A. Production capacity: The designed maximum production capacity is 20 cans/min, and the normal production line can meet the requirement of 15 cans/min (according to 3200 g/can).
B. filling capacity: 3200 g / can;
C. Packing form: large tank diameter 153mm, tank height 178-234mm; tank type: 15178# or 15234#.
D.filling temperature: normal temperature
E. sterilization method: spray sterilization; sterilization temperature is adjustable from 90-95 °C, sterilization constant temperature is adjustable in 25-35 minutes. Cool to 45-50 ° C.
F.packing: carton packaging, manual folding, automatic packing and automatic sealing.
Packing form: carton;
Arrangement of cans in the box: 2×3;
Sealing form: OPP tape;
G. code: use manual code.

(2) Filling machine and sealing machine: The filling machine adopts 6-head rotary particle filling machine, and the sealing machine adopts single-head large-tank vacuum sealing machine with European technology.

(3) Sterilization adopts spray continuous sterilizer and automatic temperature control.

(4) The transmission system power adopts domestic famous brand reducer, frequency conversion speed regulation, continuous stable operation of the production line, reducing maintenance and improving efficiency.

(5) Each section control system is equipped with detection components and optoelectronics to achieve more effective control and linkage control.

(6) Equipment performance: high degree of automation, stable continuity, safe and reliable.

(7) According to the user's free design equipment floor plan, equipment pipeline layout diagram, equipment process flow chart, equipment electrical control distribution map and other design drawings, and provide an electronic version for the user to archive.

Question and answer:

1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.

Our Services Pre-Sales Service

1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.

After-Sales Service

1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
