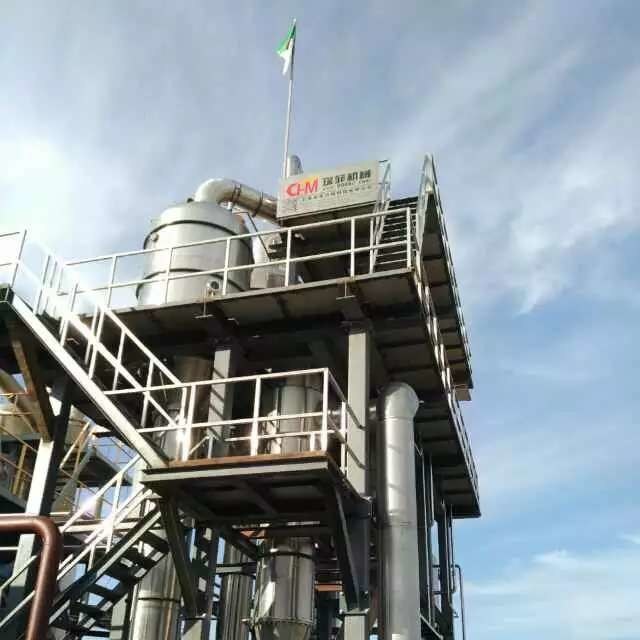

Triple Multiple Effect Evaporation For Tomato Jam 12 Months Warranty

Triple Multiple Effect Evaporation For Tomato Jam 12 Months Warranty

Triple Multiple Effect Evaporation For Tomato Jam 12 Months Warranty

Product Details:

Place of Origin: China (mainland)
Brand Name: CFM
Certification: CE IS9001
Model Number: CFM-B-655

Payment & Shipping Terms:

Minimum Order Quantity: 1/Piece
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 90 Work Days
Payment Terms: T/T, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability: 12/Piece per year
Contact Now
Detailed Product Description
Application: Food &Beveager Warranty: 12 Months
Effect: Triple-effect Certification: CE ISO
Materail: SS304, SS316L After-sales Service: Free Installation
Color: Silver
High Light:

multiple effect falling film evaporator


falling film evaporator

Triple -effect /tubular falling film evaporator for tomato jam,fruit juice concentrate


Product Description


     The tubular falling film evaporation is to add the liquid to the upper pipe box of the heating chamber of the falling film evaporator, and evenly distribute it into the heat exchange tubes through the liquid distributor, and form a uniform film flow from top to bottom under the action of gravity and air flow, and flow. During the process, it is heated and vaporized by the shell-side heating medium, and the generated steam and the liquid phase enter the separation chamber of the evaporator, and the vapor-liquid is sufficiently separated to respectively discharge the secondary steam and the concentrated liquid.
    The plate type falling film evaporation uses a hollow plate as a heat exchange element, and the liquid passes through the liquid distributor on the upper part of the heater group, and a liquid film is formed on the outer surface of each plate to flow downward by gravity, and the heating medium in the plate cavity during the flow process After heating and vaporization, the generated secondary steam enters the casing, is discharged after being shared by the mist, and the concentrated liquid enters the bottom of the casing and is discharged.
      The forced falling film evaporator is to add a large-flow circulating pump to the ordinary falling film evaporator to increase the thickness of the liquid film and reduce the scale, which can reduce and prevent the "dry wall" phenomenon.


Main characteristics

  • The top of the evaporator sprays the feed or passes through multiple overflow membranes to ensure that the liquid is evenly distributed in the evaporator membrane tube, forming a film shape, greatly improving the heat transfer coefficient, increasing the evaporation rate, and preventing the "dry wall" phenomenon.
  • The concentration ratio is large, falling film evaporation, and the concentration time is short.
  • Large-scale equipment adopts an upright floor-standing structure. The whole set of equipment is compact in structure, small in floor space, simple and smooth in layout, and represents the development of large-scale complete sets of evaporation equipment.


Technical parameters


Model Triple -effect
Water evaporating capacity/ th 3.6-20
Density of inputting material% Depending on different materials
Density of outputting material% Depending on different materials
Using steam pressure Mpa 0.6-0.8
Sieam consumption Kg/Kg evaporation amount 0.28-0.38
Evaporating temperature 48-110
Circulating cooling water consumption T/T evaporation amount(inputting water 30℃,outputting water 40℃) 14-18


Question and answer:


     1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
     2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
     3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
     4. Shipping port?
-Shanghai.(Other ports available if required)
     5. Transportation
-Shipping by sea. Air available if required by customer.

our Services Pre-Sales Service

     1.* Inquiry and consulting support.
     2.* Sample testing support.
     3.* Visit our Factory.

After-Sales Service

     1.* Training how to install and use the machines.
     2.* Engineers available to provide the technique help if necessary.


Our Company


    Shanghai Chenfei Machinery Technology Co., Ltd. is a modern technology-based joint-stock private enterprise specializing in turnkey projects such as food, fruit and vegetable, dairy and tea beverage production lines. The company is a comprehensive mechanical equipment manufacturer and turnkey engineering solution provider integrating research and development, manufacturing, installation, commissioning and training.

     Production line engineering equipment sells well all over the country, and has been exported to Southeast Asia, Africa, the Middle East, Eastern Europe and other countries and regions. It has won unanimous praise from the domestic market, Europe, America, Africa, Southeast Asia and other countries and regions.
