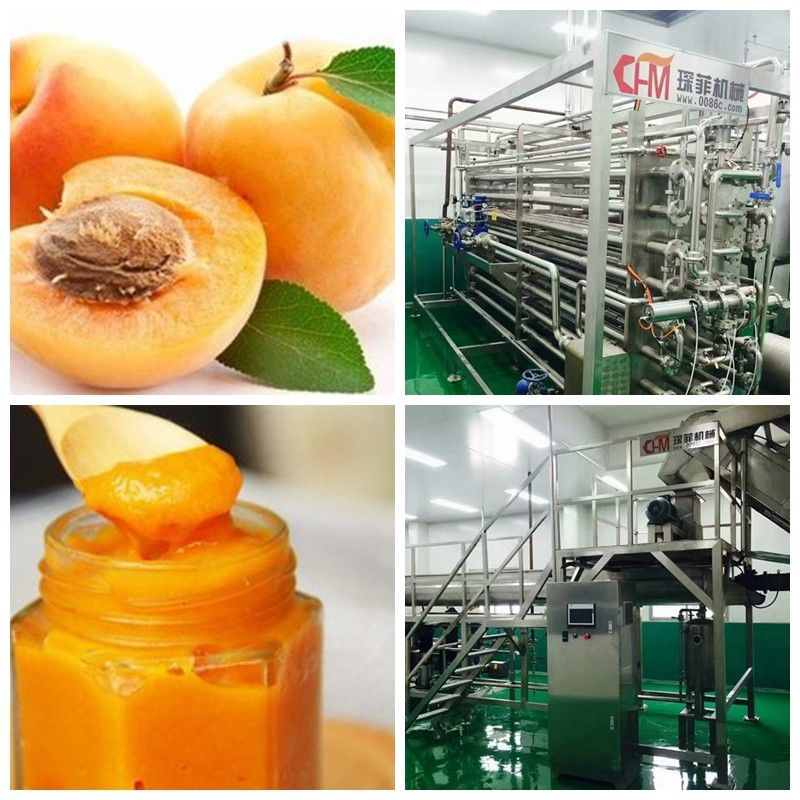

Glass Bottle Beverage Processing Machinery Automatic With Energy Saving

Glass Bottle Beverage Processing Machinery Automatic With Energy Saving

Glass Bottle Beverage Processing Machinery Automatic With Energy Saving

Product Details:

Place of Origin: China (mainland)
Brand Name: CFM
Certification: CE/ISO9001
Model Number: CFM-B-03-6000

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 90 Work Days
Payment Terms: T/T, D/A, D/P, T/T
Supply Ability: 12 sets per year
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu,China(Mainland) Type: Peach\Apricot\Ou Li Beverage
Capacity: 6000 Bottles/H Bottle Type: Glass Bottle
Automatic Grade: Automatic Feature: Energy Saving
Material: Ss304 Color: Silver
High Light:

beverage production line

,

beverage processing equipment

Peach,Apricot,Ou Li 6,000 bottles of glass bottle beverage production line per hour


  1. The motor of Chenfei’s processing machine is basically ABB, Siemens and Jiangsu Dazhong.
  2. Stainless steel is from Zhangjiagang Pohang Stainless Steel Co., Ltd. (joint venture)
  3. The water pump is from Nanfang and the centrifugal pump is from Yuanan.
  4. Electrical cabinet and PLC control system: Siemens PLC touch screen, switch and AC contactor electrical protection is Schneider, intermediate relays are Honeywell.
  5. The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables;

Technical advantage
  Taking into account the actual requirements of the customer's factory and the project equipment, the installation and positioning of the production line equipment adopts segmentation positioning, modular PLC automatic control, design layout according to the size and characteristics of the plant, ensuring the rationality of on-site construction and operation, and good On-site working environment; realizes compact layout of workshop equipment and wide space, achieving the economic and aesthetic design effect of modern production workshop;
   Energy-saving design and recycling of thermal energy are considered in all production steps, which greatly reduces energy consumption and saves more than 35% of energy in the same industry. At the same time, the cleaning water in the pre-treatment process considers a certain recycling; Waste such as slag is directly excluded from the production workshop through the screw conveyor system.
   Strictly follow the automation and standardization process to prevent product quality instability caused by human intervention. In each operation, the rationality and fluency of material operation are fully considered. Properly amplify the margin on the basis of meeting the contracted output, and maximize the function and function of each device, so as not to waste one device and not take a step.
   The pipeline process is reasonable, the equipment configuration is high-end and practical, and the utilization rate is extremely high. At the same time, considering the maximum cost savings for customers, it is the basic design concept of the company.


Flow Chart:

Aseptic Filling-Pump-Blending System{RO water/Sugar soluble system} - Filltering -Degasser - Homogenizer - UHT Sterilizer -Glass bottle Filling

Glass Bottle Beverage Processing Machinery Automatic With Energy Saving


Major equipment


NoNameParameter Description
1Glass bottle feeding conveyorConveying motor 0.75KW (speed regulation)
Chain plate Engineering plastic chain plate, 304 stainless steel bolt at the link
Frame 60*60mm stainless steel square tube
Production 6000 bottles
Size 1000*2000mm
2Three-in-one filling machineCapacity: 6000 bottles / hour
Cover type crawler type lifting cover machine
Outer frame and table: All 304 stainless steel 1.5mm thick
Door frame: Door is plexiglass Door frame is 304 stainless steel
Bottle feeding 2 meter with screw bottle separator
Bottle delivery 2 meters
Bottle dial and bottle dial
Screw cap success rate: ≥99.9%
Number of filling valves: 18
Number of bottles washed: 18
Number of caps: 8
Bottle diameter: 30-90
Bottle height: 30-150
Compressed air pressure: 0.3-0.7Mpa
Bottle water pressure: 0.25 (Mpa)
Total power: 7.5 kw
Dimensions: 2150*3150*2200mm
Weight: 4000kg
3Sleeve unitCapacity: 6000 bottles / hour (based on label length 80mm bottle type 500ml);
Label specification: φ30~100mm;
Bottle diameter: φ28~100mm;
Set length: 30~250mm;
Label thickness: ≥0.035mm;
Label material: PVC/PET/OPS;
Host power: 6KW (220V, 50HZ)
Dimensions: 2100 × 850 × 2000 mm
4Double-sided labeling machineLabeling speed: 100 pieces / minute (related to material and label size)
Labeling accuracy: ±1.5mm (excluding package and label errors)
Label height: 10-160mm
Label length: 10-300mm
Applicable paper roll inner diameter: Φ76mm or more
Applicable paper roll outer diameter: Φ300mm or less
Size of the object to be attached: thickness ≤ 80mm height ≤ 300mm


Question and answer:

1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.

Our Services Pre-Sales Service
1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.

After-Sales Service
1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
