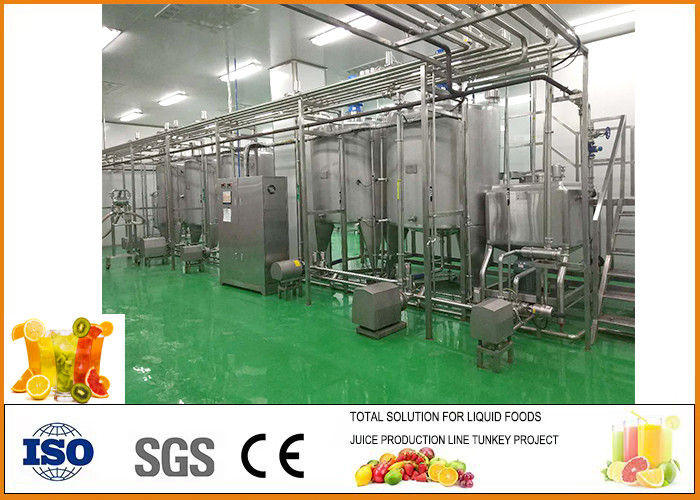

3T/H Fruit Juice Blending System Production Line CFM-B2-03T Easy Operation

3T/H Fruit Juice Blending System Production Line CFM-B2-03T Easy Operation

3T/H Fruit Juice Blending System Production Line CFM-B2-03T Easy Operation

Product Details:

Place of Origin: China (mainland)
Brand Name: CFM
Certification: CE/ISO9001
Model Number: CFM-B2-03T

Payment & Shipping Terms:

Minimum Order Quantity: 1/set
Price: negotiable
Packaging Details: Plastic film and wooden Case
Delivery Time: 150 Work Days
Payment Terms: T/T, L/C
Supply Ability: 12 sets per year
Contact Now
Detailed Product Description
Material: Concentrated Fruit Juice Product Name: Fruit Juice Blending Production Line
Feature: Easy Operation After-sales Service: Engineers Can Go Overseas
Power: Depends On Each Machine Application: Processing Line
High Light:

water blending system

,

blender mixer system

3T/H Fruit juice blending production line



Fruit juice  blending production line quality assurance:



    Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of the juice beverage blending production line equipment are basically imported or domestic first-line brands: so the quality and equipment stability are relatively high, and the Philippine mechanical after-sales service has always been better in the industry.

  • The motor is basically ABB, Siemens, Jiangsu Dazhong2.Stainless steel is Zhangjiagang Pohang 2.Stainless Steel Co., Ltd. (joint venture)
  • The remote pump for the southern pump and centrifugal pump used for the pump;
  • Electrical cabinet and PLC control system: Siemens PLC touch screen, switch and AC contactor 5.electrical protection are Schneider, intermediate relays are Huo Weil
  • The 304 pipe of Yuan'an for the pipeline, the cables are all good cables



List of equipment for juice beverage production line



No Quantity Name
A1 1 High speed sugar can
A2 1 Centrifugal pump
A3 2 Mixing tank
A4 2 Weighing and weighing control
A5 1 Centrifugal pump
A6 1 Double filter
A7 1 UHT plate sterilizer
A8 1 Temporary storage tank
A9 1 Centrifugal pump
A10 1 Pipe filter
A11 1 Filtering and centralizing control system



Core equipment



No Name Product Description
1 High speed sugar can Speed: 2800R/min
Effective volume: 500L
Power: 7.5KW
Material: stainless steel 304, three-layer structure, Miller plate sandwich heating, polyurethane foam insulation, used for high-speed dissolution of ingredients.
2 UHT plate sterilizer

The equipment parameters are as follows:
Material inlet temperature :25 ° C ~ 60 ° C"
Material outlet temperature is less than 40 °C"
Sterilization temperature: 85 ° C ~ 125 ° C adjustable"
Cooling water temperature: <32°C"


The main features of the system are as follows:
Rated processing capacity:3000KG/H 125°C 15S
The outlet temperature is about 85 ° C
Cooling water consumption: no (filling around 85 °C)
Steam consumption 360KG/H, compressed air 5m3/h
Total installed capacity: 7.4KW





Flow Chart



Concentrated fruit juice  -- blending (high speed soluble sugar)  -- filtration -- sterilization -- buffer storage -- aseptic filling



Question and answer:



1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required
by customer.


After-Sales Service


     After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.



     After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.



The Company



     The company has received wide acclaim in the industry for its scientific and technological research and development, technological innovation and optimization of energy conservation and consumption reduction in food, fruit and vegetable, dairy and beverage equipment production lines. The production lines of tomato sauce, apple, pear, peach, thorn pear, melon, medlar, sea buckthorn, eucalyptus, fruit juice, fruit powder, fruit wine, fruit vinegar and fruit extract are sold well all over the country and have been exported. Southeast Asia, Africa, the Middle East, Eastern Europe and other countries and regions. It has won unanimous praise from the domestic market, Europe, America, Africa, Southeast Asia and other countries and regions.
     The company recruits professional and technical talents in the industry. The core technical team's existing R&D and engineering technology backbones are from Huazhong Agricultural University, Yangtze University and Shanghai Polytechnic University. The continuous growth of the technical team will inject strong and lasting vitality into the quality of the Philippine machinery. Innovative and sustainable solutions will continue to enhance customer value and enhance customer competitiveness.
