Integrity-based, still respecting the virtues, committed to a long time
 |
| Place of Origin: | China (mainland) |
| Brand Name: | CFM |
| Certification: | ISO9001 / CE |
| Model Number: | CFM-B-411-411 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plastic film and wooden case |
| Delivery Time: | 35 days |
| Payment Terms: | T/T |
| Supply Ability: | 12 piece per year |
| Material: | SUS304 | Color: | Sliver |
|---|---|---|---|
| Voltage: | 220V / 380V | Power(W): | 1.5 KW |
| Warranty: | 1 Year | Package: | Plastic Film And Wooden Case |
| Filling Capacity: | 50L 60 Bags / Hour | Equipment Name: | Single Head Aseptic Bag Filling Machine |
| High Light: | aseptic filling line,aseptic filling equipment |
||

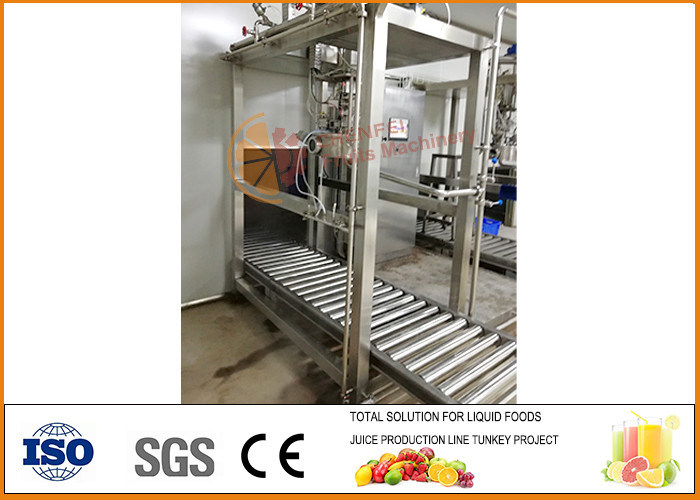

SUS304 juice and jam single head aseptic bag filling machine
Property description:
| Equipment Name | Single head sterile large bag filling machine |
| Rated capacity | 3000 KG/H |
| Filling range | 1～220L |
| Filling energy | 50L 60 bags / hour |
| Filling error | ±0.5% (flow meter) |
| Compressed air | 20M3/Hour (0.6Mpa) |
| Steam consumption | 20Kg (≥4kg/cm2) |
| Lifting | screw type |
| Dimensions(mm) | 2200x2100x2600 |
Product introduction:
Aseptic filling machines are widely used for aseptic packaging of fluid foods such as juices, pulps and jams. At room temperature, the product can be stored for more than one year, eliminating the cost and risk of cryogenic refrigerated transport.
The aseptic filling machine is directly connected to the sterilizer, and the UHT-sterilized product can be directly filled into a sterile bag. The aseptic bag is an aluminum-plastic composite multi-layer bag that effectively isolates sunlight and oxygen; maximizing product quality.
Equipment summary:
1. The temperature adjustment system automatically adjusts the temperature of the filling chamber, and uses the steam injection method to sterilize the bag mouth and the filling chamber.
2The flow weighing system is used to control the quantitative filling, and the filling is more precise.
3.Mirror welding technology ensures smooth and flat welds without leaving a sanitary corner
4.Product valves and moving parts of the filling head are protected by a steam barrier.
5.The filling chamber is steam sterilized
6.The programmable controller is used to realize automatic operation of the device.
Question and answer:
1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.
Our Services Pre-Sales Service
1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.
After-Sales Service
1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
