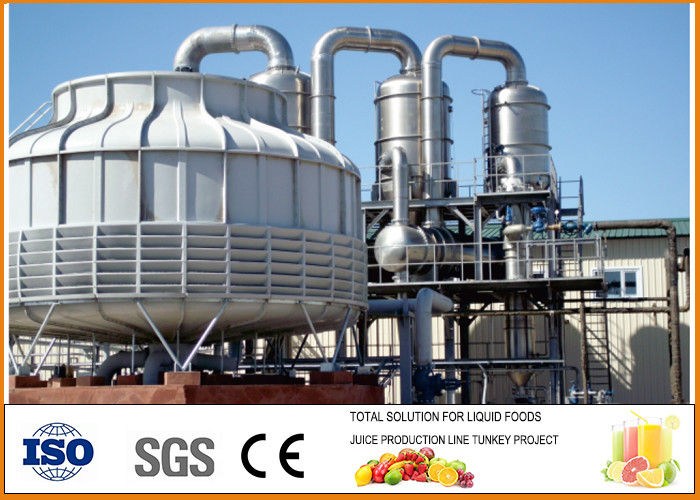

SS304 900-1000 T/day Tomato Paste Processing Line 1291.6kw Power

SS304 900-1000 T/day Tomato Paste Processing Line 1291.6kw Power

SS304 900-1000 T/day Tomato Paste Processing Line 1291.6kw  Power

Product Details:

Place of Origin: Jiangsu
Brand Name: CFM
Certification: CE/ISO9001
Model Number: CFM-A-01-253-303

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: negotiable
Packaging Details: Plastic film and wooden Case
Delivery Time: 150 Work Days
Supply Ability: 12 sets per days
Contact Now
Detailed Product Description
Usage: Industrial Production Usage Item: Automatic Tomato Jam Processing
Feature: Full-Automatic,Energy Saving And Easy Operation After-sales Service: Engineers Can Go Overseas For Installation
Power (KW): Depends On Each Machine Steam Consumption (t/h): Depends On Each Machine
High Light:

tomato paste production line

,

tomato paste processing plant

SS304 900-1000 t/day Tomato Paste Processing Line



Technical Parameters



Raw material throughput (t /d) 900-1000
Evaporation form Three-effect vacuum
Water Consumption (t/h) 44.3
Power (KW) 1291.6
Steam consumption (t/h) 20.2
Compressed air consumption (t/h) 72.2
Cooling water consumption (t/h) 1075



Tomato production line quality assurance:



      Chenfei Machinery is committed to building the world-renowned enterprise in the world's food, fruit and vegetable, dairy and beverage turnkey production project solution. The core components of the tomato processing line are basically imported or domestic first-line brands, so Chenfei’s processing machines keep the high quality and stability , they also has the good reputation of their after-sales service.

  1. The motor of Chenfei’s processing machine is basically ABB, Siemens and Jiangsu Dazhong.
  2. Stainless steel is from Zhangjiagang Pohang Stainless Steel Co., Ltd. (joint venture)
  3. The water pump is from Nanfang and the centrifugal pump is from Yuanan.
  4. Electrical cabinet and PLC control system: Siemens PLC touch screen, switch and AC contactor electrical protection is Schneider, intermediate relays are Honeywell.
  5. The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables;

​​Technical advantage:

The tomato paste is mainly processed by washing, elevating, sorting, crushing and pulping, concentrating and sterilizing, and aseptically filling into a stainless steel drum. The entire line is designed for tomato paste base on the international quality standards.

  • Crushing system: The whole tomato will be crushed in the pipe without contacting the air to protect the color of the tomato paste.
  • Evaporator energy-saving recycling: condensed water produced by one effect is used for secondary evaporation for secondary effect secondary utilization cycle
  • Sterilization machine safety: rational design of fungicide Bix36-38 system pressure does not exceed 7Mpa, more than 10Mpa is more dangerous.



Flow  Chart:



Fresh Tomato → Elevating → Washing → Fruit Washing and Sorting → Crushing → Pre-heating → Finishing/Pulping/Refining → Storage → Concentration → Storage → TIT Sterilizing → Aseptic Filling→ End Product → Pump → Blending

System → Filltering → Degasser → Homogenizer → UHT Sterilizer →Tinplate Filling

                                                                                                            →Cans Filling

                                                                                                            →Corner Spout Bag Filling

                                                                                                            →Glass bottle Filling

                                                                                                            →Sugar soluble system

Question and answer:



1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.



Our Services Pre-Sales Service


1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.


After-Sales Service


1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.



The Company:



       Shanghai ChenFei Machinery Technology Co., Ltd. is committed to food, fruits and vegetables, dairy products, beverage etc. production line turnkey project overall solution. ChenFei is widely praised in the industry, especially for R &D, technology innovation and energy saving optimization revamp practice and experiences. Production equipments for processing tomato sauce, apple, pear, peach, pear, seed melon, yam and lee, etc. are best-selling in China and exported to Southeast Asia, Africa, the Middle East, Eastern Europe and other countries and regions. ChenFei has won consistent high praise from the domestic market, Europe, the Americas, Africa, Southeast Asia and other countries and regions.
