Small Brix 36/38 and 28/30 Tomato Paste Processing Plant CFM-A-021-250-300

Small Brix 36/38 and 28/30 Tomato Paste Processing Plant CFM-A-021-250-300

Small  Brix 36/38 and 28/30  Tomato Paste Processing Plant CFM-A-021-250-300

Product Details:

Place of Origin: Jiangsu
Brand Name: CFM
Certification: CE/ISO9001
Model Number: CFM-A-021-250-300

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: negotiable
Packaging Details: Plastic film and wooden Case
Delivery Time: 150 Work Days
Supply Ability: 1+Piece+Day
Contact Now
Detailed Product Description
Processing Type: Tomato Processing Line Weight: Depends On Each Machine
Feature: Full-Automatic,Energy Saving And Easy Operation Final Products: Tomato Paste
Function: Washimg, Crushing,pulping,etc. After-sales Service: Engineers Can Go Overseas For Installation
Material: SS304
High Light:

tomato paste production line


tomato paste manufacturing plant

Small Brix 36/38 28/30 Tomato Paste Processing Plant


Technical Parameters


Raw material throughput  250-300(t /d)

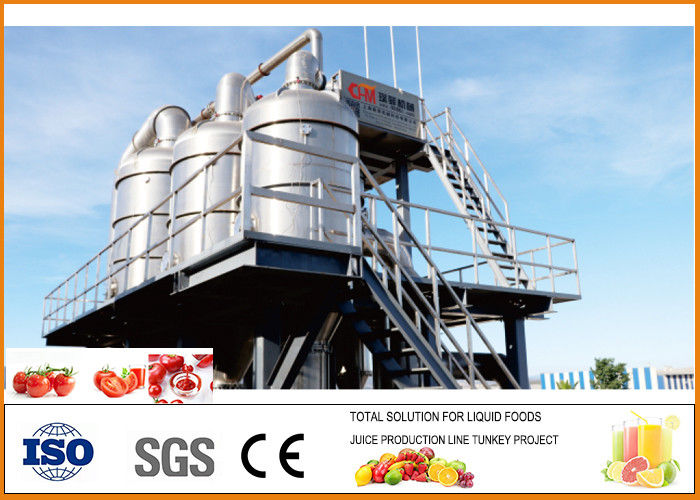

Evaporation form Three-effect vacuum
Water Consumption  21.6(t/h)
Power 412.4(KW)
Steam consumption  5.22(t/h)
Compressed air consumption 66.2(t/h)
Cooling water consumption  307(t/h)



Tomato processing line quality assurance:


1.The motors of Chenfei processing machine are mainly from ABB, Siemens and Jiangsu Dazhong reputable international famous brands.
2.Stainless steel comes from Zhangjiagang Pohang Stainless Steel Co., Ltd. (joint venture). 3.This company has cooperated with our company for many years and the cooperation is very pleasant.
3.The pump is from the south and the centrifugal pump is from Yuanan.
4.Electrical cabinet and PLC control system: Germany Siemens PLC touch screen, switch and AC contactor electrical protection is Schneider, the intermediate relay is Honeywell.
5.The 304 pipe we use for the pipeline comes from Yuanan, and the cable is a quality control cable that is professionally used for mechanical equipment;​


Technical advantage:

    The tomato paste is mainly processed by washing, elevating, sorting, crushing and pulping, concentrating and sterilizing, and aseptically filling into a stainless steel drum. The entire line is designed for tomato paste base on the international quality standards.

  • Crushing system: The whole tomato will be crushed in the pipe without contact with the air, broken under full vacuum, which will greatly protect the color of the ketchup out fresh.
  • Evaporator energy-saving recovery: Condensed water that can be produced by effect for secondary evaporation, used for secondary effect secondary utilization cycle.
  • Sterilization machine safety: In the design of sterilization, we have considered that the rational design of the biocide Bix36-38 system pressure does not exceed 7Mpa, more than 10Mpa is more dangerous, strictly in accordance with the standard implementation.

Flow  Chart:


Fresh Tomato→Elevating→Washing→Fruit washing and sorting→Crushing→

Preheating→Storage→Concentrating→Storage→Tubular Sterilizing →Aseptic Filling→Final Product


Question and answer:


1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.


Our Services Pre-Sales Service

1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.

After-Sales Service

 Training system
    Chenfei  provides customers with comprehensive personnel technical training programs, ensuring correct operation of on-site personnel through training, improving maintenance and troubleshooting capabilities, reducing downtime and improving equipment efficiency.
Second, our training services.
