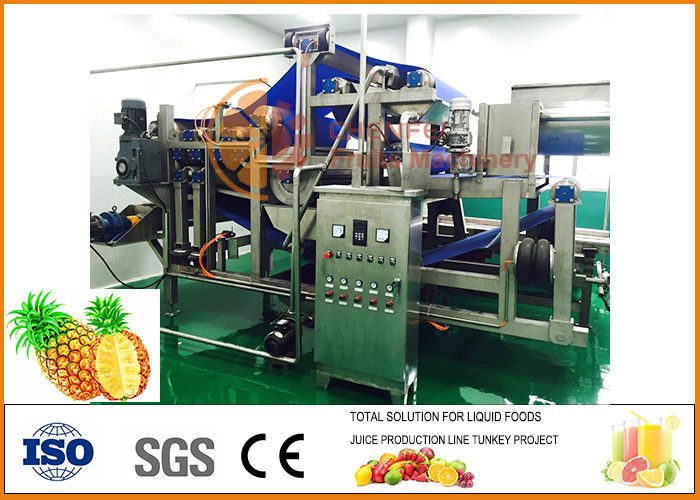

NFC Pineapple Juice Production line , Pineapple Juice Processing Machine

NFC Pineapple Juice Production line , Pineapple Juice Processing Machine

NFC Pineapple Juice Production line , Pineapple Juice Processing Machine

Product Details:

Place of Origin: China (mainland)
Brand Name: CFM
Certification: CE/ISO9001
Model Number: CFM-B-02-3T

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: negotiable
Packaging Details: Plastic film and wooden Case
Delivery Time: 150 Work Days
Supply Ability: 12 sets per year
Contact Now
Detailed Product Description
Feature: High Efficiency, Full-Automatic,energy Saving And Easy Operation Type: Turnkey Juice Processing Line
Filling Volume Range: According To The Customer's Requirement Usage: Pineapple Processing
Item: Automatic Pineapple Processing Line After-sales Service: Engineers Can Go Overseas For Installation
Material: SS304
High Light:

pineapple juice processing machine


pineapple juice processing line


NFC pineapple juice/Pineapple fruit juice processing line


Flow Chart:

Fresh Fruit→Elevating→Washing→Sorting→Crushing→BeltPressing→Sterilizing→
Enzyme Treatment→Utrafitration→Concentration→Sterilizing→Aseptic Filling

Pineapple processing line quality assurance:

     Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of mango and pineapple processing production line are basically imported or domestic first-line brands: so the quality and equipment stability are relatively high, and the service of Philippine mechanical after-sales has always been better in the industry.

  • The motor of Chenfei’s processing machine is basically ABB, Siemens and Jiangsu Dazhong.
  • Stainless steel is from Zhangjiagang Pohang Stainless Steel Co., Ltd. (joint venture)
  • The water pump is from Nanfang and the centrifugal pump is from Yuanan.
  • Electrical cabinet and PLC control system: Siemens PLC touch screen, switch and AC contactor electrical protection is Schneider, intermediate relays are Honeywell.
  • The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables.

​Technical advantage:


   Tropical fruit production lines such as mango and pineapple include bubbling cleaning, fruit inspection, brush cleaning, peeling and denucleation, beating, crushing, belt juice extraction, separation, concentration equipment, UHT sterilization and aseptic bag filling. Equipment composition. The entire production line and related equipment are designed for tropical fruit juices such as mango and pineapple according to international quality standards.

  •  Peeling and Kerneling: Peeling and denucleating equipment developed for mangoes to protect mango jam.
  • Grinding oil: extracting the citrus oil-containing portion of the citrus surface by nailing.
  • Beating: the mango pulp is refined.
  • Broken juice: crush the pineapple to extract juice and obtain pineapple juice.
  • Sterilization: through UHT instant sterilization technology, through the preservation of the color and taste of the jam, through sterilization.
  • Aseptic filling: increase the shelf life of jam juice by storing in aseptic bulk bags.


Technical Parameters


Raw material Fresh pineapple
End products Concentrate or clear juice
Capacity 3T/H
Juice yield 45%
Fixation content 10~20Brix
Concentrated juice concentration 50~75Brix
Product packaging Sterile large bag / glass bottle / PET bottle / aseptic carton
Yield Customized according to customer needs

Question and answer:

1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.


Our Services Pre-Sales Service

  1. Well and High Quality Control ;
  2. Prompt Delivery ,long term testing before delivery;
  3. improve new technology all time;
  4. Competitive Prices ;
  5. Earth-friendly Products ;
  6. In a Variety of Design ;
  7. Small Order Acceptable .
