1000kg/H Apple Pear Dried Fruit Production Line Peeled Core Machine

1000kg/H Apple Pear Dried Fruit Production Line Peeled Core Machine

    • 1000kg/H Apple Pear Dried Fruit Production Line Peeled Core Machine
    • 1000kg/H Apple Pear Dried Fruit Production Line Peeled Core Machine
    • 1000kg/H Apple Pear Dried Fruit Production Line Peeled Core Machine
  • 1000kg/H Apple Pear Dried Fruit Production Line Peeled Core Machine

    Product Details:

    Place of Origin: China (mainland)
    Brand Name: CFM
    Certification: CE/ISO9001
    Model Number: CFM-S-07

    Payment & Shipping Terms:

    Minimum Order Quantity: 1/Set
    Price: negotiable
    Packaging Details: Plastic film and wooden Case
    Delivery Time: 150 Work Days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 12 sets per year
    Contact Now
    Detailed Product Description
    Product Name: Dried Apple Pear Production Line Capacity: 0.5T/H
    Material: Fresh Apple & Pear Port: Shanghai
    Warrtany: 12months Type: Dried Fruit Production Line
    High Light:

    dried fruit processing equipment


    blueberry dryer machine

    1T/H apple pear hot air drying production line


    Dried Apple pear production line quality assurance:

        Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of the apple pear hot air drying production line are basically imported or domestic first-line brands: so the quality and equipment stability is relatively high, and the mechanical after-sales service has always been better in the industry.


    1. The motor of Chenfei’s processing machine is basically ABB, Siemens and Jiangsu Dazhong.
    2. Stainless steel is from Zhangjiagang Pohang Stainless Steel Co., Ltd. (joint venture)
    3. The water pump is from Nanfang and the centrifugal pump is from Yuanan.
    4. Electrical cabinet and PLC control system: Siemens PLC touch screen, switch and AC contactor electrical protection is Schneider, intermediate relays are Honeywell.

    5. The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables.

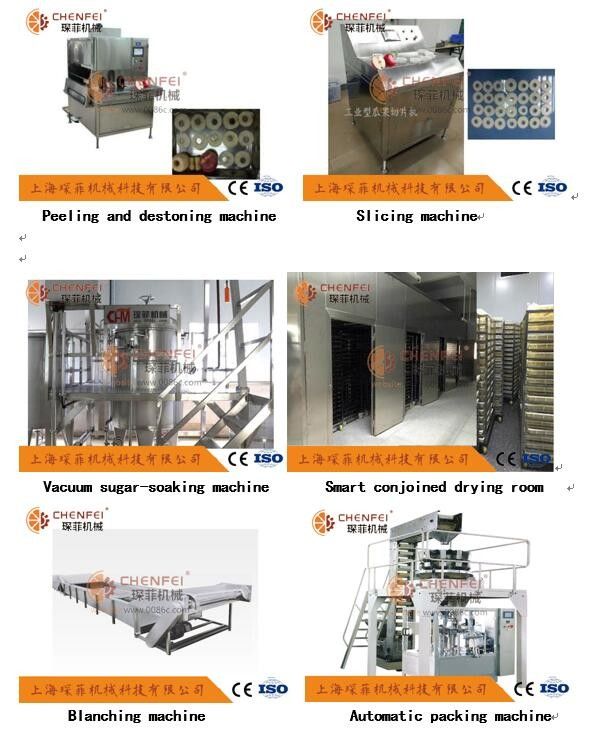

    Dried Apple pear production line equipment list

    No. Equipment Name  Capacity  Quantity
    Production line equipment system
    1 Hoist  1T/H  1
    2 Roller picker 1T/H  1
    3 Bubbling washer 1T/H  1
    4 Hoist  1T/H  1
    5 Belt splitting machine  1T/H  1
    6 Peeled core machine  1200/H 2
    7 Conveyor (fruit)  1T/H 1
    8 Conveyor (pomace)  1T/H 1
    9 Slicer  1T/H  1
    10 Hoist  1T/H  1
    11 Conveyor (fruit slice)  1T/H 1
    12 Blanching machine 0.6T/H 1
    13 Color protection machine 0.6T/H  1
    14 Color protection liquid mixing tank 2T 1
    15 Diaphragm metering pump  2T/H 1
    16 Sanitary centrifugal pump  5T/H 2
    17 Bubble cleaner  1T/H 1
    18 Vibrating screen  1T/H  1
    19 Air dryer conveyor 1T/H 1
    20 High speed sugar soluble cans  0.8T  1
    21 Vacuum immersion sugar unit 1.5T+1.5T  1
    22 Hopper System  1T/H 1
    23 Receiving conveyor  1T/H  1
    24 Hoist  1T/H 1
    25 Net chain dryer  2T/H 1
    26 Sanitary centrifugal pump  5T/H 3
    27 Drying room 500 square meters dry area 1
    28 Hoist  1T/H 1
    29 Belt picker 1T/H  1
    30 Packing machine 30-50 packs/min 1
    Control cabinet and cable control system (behind the cabinet)
    Installation and commissioning costs
    Transportation and insurance
    Training fee


    Flow chart

    Fresh fruit -Bubble washing - fruit conveying - peeling and de-stonging - slicing- blanching - color protection - air drying - sugar soaking - drying room - softening - packaging


    Question and answer:

    1. Any guarantee of the machines?
    -YES, one-year free maintenance and life time paid service.
    2. Can you do the OEM design for customers?
    -YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
    3. What is the package of the machines?
    -The machines will be wrapped with plastic film and put in wooden cases.
    4. Shipping port?
    -Shanghai.(Other ports available if required)
    5. Transportation
    -Shipping by sea. Air available if required by customer.

    Our Services Pre-Sales Service
    1.* Inquiry and consulting support.
    2.* Sample testing support.
    3.* Visit our Factory.


    After-Sales Service
    1.* Training how to install and use the machines.
    2.* Engineers available to provide the technique help if necessary.
