Integrity-based, still respecting the virtues, committed to a long time
 |
| Place of Origin: | China (mainland) |
| Brand Name: | CFM |
| Certification: | CE/ISO9001 |
| Model Number: | CFM-A-02-11 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiable |
| Packaging Details: | plastic film and wooden Case |
| Delivery Time: | 100 Work Days |
| Payment Terms: | T/T |
| Supply Ability: | 12 sets per year |
| Condition: | New | Package: | Glass Bottle |
|---|---|---|---|
| Type: | Jam Glass Bottle Production Line | Warranty: | 360days |
| Specification: | 340ml | After-sales Service: | Engineers Can Go Overseas |
| High Light: | beverage production line,beverage processing equipment |
||
1500 bottles of 340ml jam glass bottle production line per hour
Jam production line quality assurance:
Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of the jam glass bottle processing line equipment are basically imported or domestic first-line brands: so the quality and equipment stability are relatively high, and the Philippine mechanical after-sales service has always been better in the industry.
The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables;
Technical Parameters
| No | Product Name | Parameters | Product Description | |

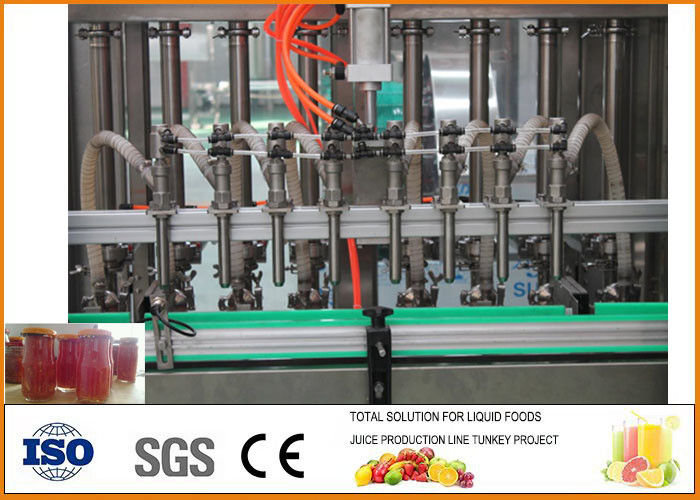

| 1 | Fully automatic plunger type 8 piston filling machine | The main technical parameters: Production: 1000-1500 bottles / hour Suitable for: glass bottles Power: 2.2kw Dimensions: 1250*600*1850mm Weight: 600kg |
The fully automatic plunger type 8 piston filling machine is a new product developed by our company to meet the market demand and introduce advanced foreign technology. The machine adopts high quality SUS304 stainless steel plunger type filling, which can be applied to the filling of sauces, oils or viscous liquids. It is economical and practical, and has a small footprint. It is widely used in pharmaceutical, food, pesticide, chemical, cosmetics and other industries. Liquid packaging. | |
| 2 | Sterilizer | The design of this product is based on the sterilization of canned and glass bottles. The heating method is boiler steam heating, the sterilization method is top shower cycle, and the cooling method is indirect cooling. The control mode is semi-automatic control, which automatically controls the sterilization temperature, sterilization time and sterilization pressure. The equipment is stable in quality and durable. The optimized sealing structure is more durable and easy to maintain. It is easy to operate and easy to install. It makes the machine safer and more convenient according to the ergonomic design. |
||
Relative devices
| Project | Description |
| Sterilization pot inner diameter / barrel length / volume | 1000mm /2200mm / about 1.96m3 |
| Effective use size in the pot (length / width / height) | 2200mm/650mm/650mm |
| Design pressure | 0.35Mpa |
| Pressure test pressure | 0.44Mpa |
| Maximum operating temperature | 142 ° C |
| Power supply voltage | 380V |
| Pot material | SUS30408 |
| Pot body wall thickness | 4 mm |
| Floor area (length / width / height) about | 4200mm × 1500mm × 2700mm |
Flow Chart:
Puree -- blending -- filling -- sterilization -- drying -- labeling -- coding -- final product
Question and answer:
1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.
Our Services Pre-Sales Service
1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.
After-Sales Service
1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
