3000 Bottles Of 50Ml Anthocyanin Concentrate Oral Liquid Production Line Per Hour

3000 Bottles Of 50Ml Anthocyanin Concentrate Oral Liquid Production Line Per Hour

3000 Bottles Of 50Ml Anthocyanin Concentrate Oral Liquid Production Line Per Hour

Product Details:

Place of Origin: China (mainland)
Brand Name: CFM
Certification: CE/ISO9001
Model Number: CFM-A-02-10

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 150 Work Days
Payment Terms: T/T, L/C
Supply Ability: 12 sets per year
Contact Now
Detailed Product Description
Condition: New Place Of Origin: Jangsu,China(Mainland)
Type: Oral Liquid Production Line Warranty: 360days
Specification: 50ml Item: Anthocyanin Oral Liquid Production Line
Feature: Energy Saving After-sales Service: Engineers Can Go Overseas
High Light:

beverage production line

,

beverage processing equipment

3000 bottles of 50ml anthocyanin concentrate oral liquid production line per hour



Oral liquid production line quality assurance:

      Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of the oral liquid processing line equipment are basically imported or domestic first-line brands: so the quality and equipment stability are relatively high, and the Philippine mechanical after-sales service has always been better in the industry.

  1. The motor of Chenfei’s processing machine is basically ABB, Siemens and Jiangsu Dazhong.
  2. Stainless steel is from Zhangjiagang Pohang Stainless Steel Co., Ltd. (joint venture)
  3. The water pump is from Nanfang and the centrifugal pump is from Yuanan.
  4. Electrical cabinet and PLC control system: Siemens PLC touch screen, switch and AC contactor electrical protection is Schneider, intermediate relays are Honeywell.
  5. The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables;



Technical Parameters



No Product Name Parameters Product Description

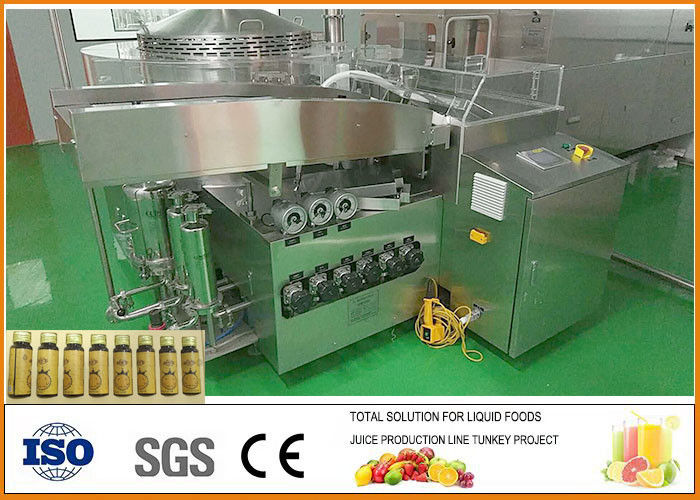

1 Vertical ultrasonic cleaning Dimensions: 2500 × 2400 × 1620mm
Weight: 2300Kg
Power: 15.7kw
Exhaust air volume: 100m3/h
Full pressure: 150-200Pa
Purified water consumption: 0.5m3/h,
Compressed air consumption: 30m3/h, 0.6Mpa
2 Tunnel sterilization dryer Dimensions: 2760 × 1600 × 2400mm
Weight: 2500kg
Power: 48kW
Sterilization temperature: 0-350 ° C (adjustable)
Mesh belt width: 600mm
Preheating section length dimension: 580mm
Heating section length dimension: 1320mm
Cooling section length size: 1650mm
Exhaust air volume (±20%): 2000m3/h
Purified water consumption:
0.3t/h (for high temperature hot air fan cooling)
2t/h (for mesh belt cleaning)
3 Oral liquid filling and capping machine Dimensions: 3860 × 1190 × 1800mm
Weight: 1500kg
Power: 17kw
Number of needles: 5
Number of caps: 1
Filling form peristaltic pump filling
Filling accuracy: ≤ ± 2%
Rolling pass pass rate: ≥99.6%
Electric heating tube: far infrared electric stone
4 Water bath sterilization and cooling machine Size: 12000x14000x1200mm (l*w*h)
The main structure is 304 stainless steel (including insulation)
The machine adopts circulating hot water sterilization, circulating warm water pre-cooling, cooling water cooling, and low energy consumption. It is suitable for post-sterilization operation of tinplate, glass bottles and plastic bottled products of various sizes. It is conveyed by a rubberized stainless steel roller to prevent broken bottles.
Continuous production, stepless speed regulation, arbitrarily adjust material sterilization time in the design interval.
The equipment operates with low noise, accurate temperature control and automatic monitoring of sterilization temperature.



Flow  Chart:

 bottle Washing  -- bottle drying  -- filling -- cap sealing --cooling tunnel and pasteurizing -- drying-light inspection --labeling -- coding -- Packing into carton



Question and answer:



1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.


Our Services Pre-Sales Service


1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.


After-Sales Service


1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
