Integrity-based, still respecting the virtues, committed to a long time
 |
| Place of Origin: | China (mainland) |
| Brand Name: | CFM |
| Certification: | CE/ISO9001 |
| Model Number: | CFM-S-0.3-0.5T |
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plastic film and wooden Case |
| Delivery Time: | 150 Work Days |
| Supply Ability: | 12 sets per year |
| Feature: | Full-Automatic,Energy Saving And Easy Operation | Material: | 304 Stainless Steel |
|---|---|---|---|
| Product Name: | Free-drying Strawberry Production Line | Certification: | CE,ISO9001 |
| Warrtany: | 1 Year | Size: | Depends On Each Machine |
| High Light: | blueberry dryer machine,dried mango processing machine |
||
Dried Strawberry production line 500kg/day
Strawberry freeze Slices line quality assurance:
Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of the strawberry slices processing production line are basically imported or domestic first-line brands: so the quality and equipment stability is relatively high, and the mechanical after-sales service has always been better in the industry.
1.The motor of Chenfei’s processing machine is basically ABB, Siemens and Jiangsu Dazhong.
2.Stainless steel is from Zhangjiagang Pohang Stainless Steel Co., Ltd. (joint venture)
3.The water pump is from Nanfang and the centrifugal pump is from Yuanan.
4.Electrical cabinet and PLC control system: Siemens PLC touch screen, switch and AC contactor electrical protection is Schneider, intermediate relays are Honeywell.
5.The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables.
Strawberry freeze line technology advantages:
*Material selection: fresh strawberries, remove the insect fruit, bad fruit, remove the pedicle, clean with water and dry;
*Slice the washed strawberries for color protection;
*Wobble plate: remove the strawberries and put them on the tray;
*Put the tray into the lyophilizer for lyophilization;
*Picking: picking dried strawberries after lyophilization;
*Packaging: by weighing and then packaging;
*Quality inspection:
*Storage.
Production line core equipment parameters:
| No | Equipment Name | Parameters | Product Description |
| 1 | Vacuum freeze dryer | 1. Model: CFM-FD-200 2. The overall shape of the machine is cylindrical, the diameter of the freeze-drying bin is 2800mm, and the length is about 17000mm. 3. Power 320KW, the actual use is about 190-250KW 4. The door seal form medical special O-ring seal to ensure the degree of vacuum 5. Drying warehouse material SUS304 stainless steel thickness 8mm 6. Drying warehouse nominal dry area 200 m2 7. Pallet dimensions: 630*590*35mm 8. Pallet size (effective area) 196.26 m2 9. 528 trays per drying tray 10. Standard filling volume of each drying bin is 2000KG 11. Number of radiant panels 92 12. Radiation board material; 6063-T5 aluminum alloy 13. Cold trap system cold trap is a self-developed aluminum serpentine coil type, which increases the water catching area, improves water catching efficiency, and is cost-effective. 14. Refrigeration system Fujitsu screw unit of Italy, environmentally friendly R404 or R507 refrigerant with automatic energy adjustment function, high stability and low noise 15. Vacuum system Germany Leybold vacuum pump and Shanghai brand vacuum pump, rotary vane pump and Roots pump combination, high precision German Leybold Leybold vacuum components 16. Heating system CNP Southern pump industry, steam special plate heat exchanger, steam valve parts and unique energy-saving technology, WEIKA valve 17.Automation control system PLC Siemens, Schneider electrical components, original Lenovo industrial computer control, real-time data storage and query 18. Quick freezing cold storage screw refrigeration unit, size 9000*3300*3800 |
|

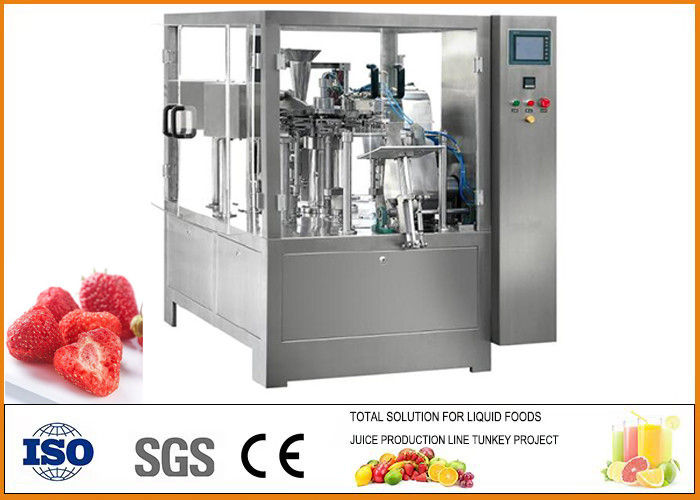

| 2 | Bag packaging equipment | 1. Bag size: Width 100-200mm Length 100-300mm 2. Packing speed: 5-40bag/min 3. Power supply: 380V/50HZ 4. Power: 6.0KW 5. Compressed air: 6-8kg 6. Air consumption: 0.4m3/min 7. Weight: 500kg |
|
Flow chart:
Fresh Strawberry -- Bubbling washing -- Slicing -- Color Protection -- Plate Loading -- Freeze Drying -- Packing
Question and answer:
1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.
Our Services Pre-Sales Service
1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.
After-Sales Service
1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
