Integrity-based, still respecting the virtues, committed to a long time
 |
| Place of Origin: | Jiangsu |
| Brand Name: | CFM |
| Certification: | CE IS9001 |
| Model Number: | CFM-G-5T/H |
| Minimum Order Quantity: | 1/unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | plastic film and wooden Case |
| Delivery Time: | 65 Work Days |
| Supply Ability: | 1/Piece+Days |
| Name: | Passion Fruit Juice Production Line | Capacity: | 5T /H |
|---|---|---|---|
| Warrtany: | 1 Year | Application: | Passion Fruit Juice |
| Material: | 304 Stainless Steel | Power: | According To The Consumption Of Each Machine |
| High Light: | fruit juice manufacturing plant,fruit juice processing plant |
||
5T/H automatic passion fruit juice production line, processing line
The nutritional value of passion fruit:
Passion fruit contains 17 kinds of amino acids, rich in protein, fat, sugar, vitamins, calcium, phosphorus, iron, potassium, SOD enzymes and super fiber, etc. 165 kinds of beneficial substances for human body. Its high VC content has refreshing, refreshing and laxative, preventing colorectal cancer; tonifying kidney, detoxifying and nourishing; relieving alcohol and protecting liver, eliminating fatigue; having effect on high blood pressure, high blood sugar and lowering cholesterol; oral ulcer, periodontitis, It has effects on pharyngitis; it has effects on colitis and gastrointestinal diseases; regulates blood sugar, helps prevent diabetes; forms strong bones, relieves osteoporosis; improves human immunity and prevents diseases.
Passion fruit processing line quality assurance: Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of the passion processing production line are basically imported or domestic first-line brands: so the quality and equipment stability is relatively high, and the mechanical after-sales service has always been better in the industry.
1.The motor of Chenfei’s processing machine is basically ABB, Siemens and Jiangsu Dazhong.
2.Stainless steel is from Zhangjiagang Pohang Stainless Steel Co., Ltd. (joint venture)
3.The water pump is from Nanfang and the centrifugal pump is from Yuanan.
4.Electrical cabinet and PLC control system: Siemens PLC touch screen, switch and AC contactor electrical protection is Schneider, intermediate relays are Honeywell.
5.The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables.
Passion fruit processing line technology advantages:
The preparation method of the passion fruit juice processing production line processing production line comprises the following steps:
1. Lift: Lift the passion fruit to the washing machine for cleaning;
2. Washing: The surface of the passion fruit will be cleaned by spraying with a brush to remove impurities such as dust on the surface;
3. Cut the semi-squeezing machine: peel and juice the passion fruit by equipment;
4. Buffer storage: the freshly squeezed passion fruit juice is temporarily stored in a sterile tank;
5.UHT instant sterilization: By instantaneous sterilization, the color and taste of the juice are kept to the maximum extent;
6. Aseptic filling: Fill the juice into the aseptic bag by aseptic filling machine for 1-2 years (normal temperature).
Production line core equipment parameters:
| No | Equipment Name | Parameters | Product Description |

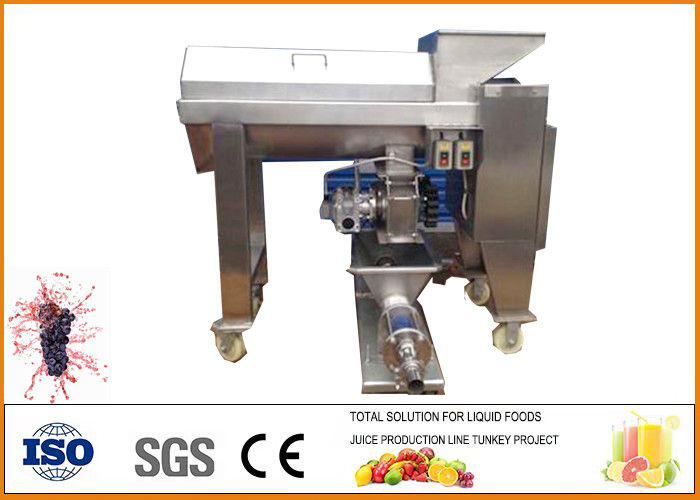

| 1 | Cut half juicer |
1.Capacity 3-5T/H |
The semi-squeezing juice machine combines juicing and peeling into one, with high efficiency, no need for grading, and large output, 3-5 tons per hour. The parts in contact with the material are made of stainless steel. Suitable for large-scale industrial production, it is an essential equipment for the production of fruit juice and fruit wine. |
| 2 | Seed remover |
1.Equipment specifications: 1800mm × 1000mm × 900mm 3.Capacity: 3-5 tons / hour |
Dedicated to the separation of passion fruit and seed, the main body is made of stainless steel 304, which realizes automatic separation of seed meat. |
| 3 | UHT sterilization machine | Capacity :3 tons Model :CFI1-LG-3T Power (KW): 7.4 Dimensions (m x m x m): 4.5x2.2x1.9 Steam consumption (kg/h) :360 |
The ultra-high temperature sterilization machine can simultaneously heat, heat, heat recover and cool the materials. In the preheating section and the sterilization section, the heat can be fully recovered. This sterilizing device uses a multi-stage heating, sterilizing and cooling of liquid or slurry materials to improve the efficiency of heat energy use. |
| 4 | Single head aseptic bag filling machine | Equipment Name:Single-head sterile large bag filling machine Rated capacity: 3000KG/H Filling range: 1 ~ 220L Filling energy: 220L 20 bags / hour Filling error: ±0.5% (flow meter) Compressed air: 20M3/Hour (0.6Mpa) Steam consumption: 20Kg (≥4kg/cm2) Lift: Screw type Dimensions: 2200x2100x2600mm |
*The aseptic filling machine is directly connected to the sterilizer, and the UHT-sterilized product can be directly filled into a sterile bag. The aseptic bag is an aluminum-plastic composite multi-layer bag that effectively isolates sunlight and oxygen; maximizing product quality. *The temperature adjustment system automatically adjusts the temperature of the filling chamber, and uses the steam injection method to sterilize the bag mouth and the filling chamber. *The flow weighing system is used to control the quantitative filling, and the filling is more precise; *Mirror welding technology ensures smooth and flat welds without leaving a sanitary corner; *Product valves and moving parts of the filling head are protected by a steam barrier. *The filling chamber is steam sterilized; *The programmable controller is used to realize automatic operation of the device. |
Flow chart:
Fresh Fruits - Bubbling washing - Brush washing - Elevating- Half Cutting - Seed removing - Buffer storge - UHT Tubular Sterilization -Aseptic Filling
Question and answer:
1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.
Our Services Pre-Sales Service
1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.
After-Sales Service
1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
