| Place of Origin: | Jiangsu |
| Brand Name: | CFM |
| Certification: | CE IS9001 |
| Model Number: | CFM-K-5T/H |
| Minimum Order Quantity: | 1/unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plastic film and wooden Case |
| Delivery Time: | 150 Work Days |
| Supply Ability: | 1/Piece+Days |
| Name: | Kiwi Juice Production Line | Capacity: | 5T /H |
|---|---|---|---|
| Port: | Shanghai,China (Mainland) | Process Type: | Juice Production Line |
| Dimension(L*W*H): | Customized | Voltage: | 220V/380V |
| High Light: | fruit juice manufacturing plant,fruit juice processing line |
||

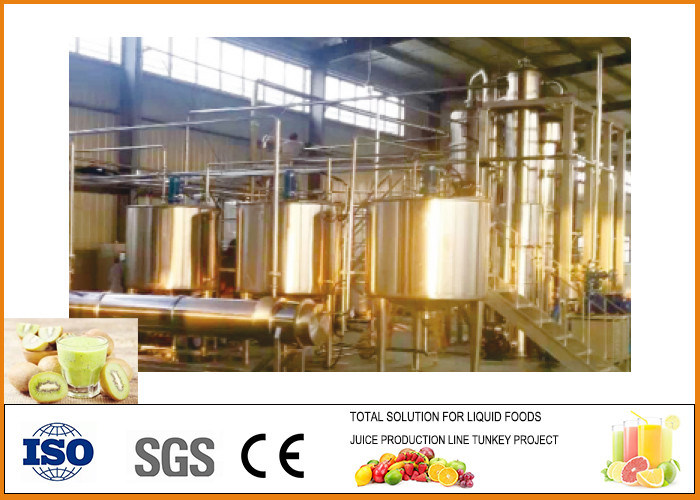

Kiwi juice production line 5T / H fruit juice processing line
The nutritional value of kiwi:
Known as the "king of fruits", kiwifruit is rich in vitamin C, vitamin A, vitamin E, and potassium, magnesium, and cellulose. It also contains other rare nutrients such as folic acid, carotene, calcium, and corpus luteum. Prime, amino acids, natural inositol. Often used to fight scurvy. Not only that, kiwifruit can also stabilize mood, lower cholesterol, help digestion, prevent constipation, and also have the effect of quenching thirst and diuresis and protecting the heart.
Kiwi processing line quality assurance: Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. The core components of the kiwi processing production line are basically imported or domestic first-line brands: so the quality and equipment stability is relatively high, and the mechanical after-sales service has always been better in the industry.
1.The motor of Chenfei’s processing machine is basically ABB, Siemens and Jiangsu Dazhong.
2.Stainless steel is from Zhangjiagang Pohang Stainless Steel Co., Ltd. (joint venture)
3.The water pump is from Nanfang and the centrifugal pump is from Yuanan.
4.Electrical cabinet and PLC control system: Siemens PLC touch screen, switch and AC contactor electrical protection is Schneider, intermediate relays are Honeywell.
5.The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables.
Kiwi processing line technology advantages:
The preparation method of the kiwi juice processing production line processing production line comprises the following steps:
(1) The kiwi fruit is first cleaned and depilated, then blanched in boiling water for 15-20 min, and then cooled to room temperature, wherein the weight of the water is 3-4 times the weight of the kiwi;
(2) The kiwifruit after blanching is poured into a crusher for crushing, and then the crushed slurry is added to a beater to separate and remove the pomace, and the kiwi puree is collected;
(3) Sterilizing the kiwi puree with a tubular sterilizer, and then fill into the aseptic bag by the aseptic filling machine and store in the steel drum.
Production line core equipment parameters:
|
No |
Equipment Name |
Parameters |
Product Description |
|
1 |
Crusher |
Capacity: 5T/H Motor power: 7.5KW |
Hammer-type structure, the part which contact with the material is high-quality SUS304 stainless steel, and the crushing capacity is adjustable. |
|
2 |
Pulping Machine |
Rated processing capacity 5000KG/H Blade speed 1440RPM, continuous One mesh diameter head Φ1.5mm Two mesh diameter head road Φ1.0mm The part in contact with the material is SUS304 stainless steel Motor power: 11KW+11KW Dimensions: 1800*700*1600 (length * width * height) |
|
|
3 |
UHT sterilization machine |
Capacity :3 tons Model :CFI1-LG-3T Power (KW): 7.4 Dimensions (m x m x m): 4.5x2.2x1.9 Steam consumption (kg/h) :360 |
The ultra-high temperature sterilization machine can simultaneously heat, heat recover and cool the materials. In the preheating section and the sterilization section, the heat can be fully recovered. This sterilizing device uses a multi-stage heating, sterilizing and cooling of liquid or slurry materials to improve the efficiency of heat energy use. |
|
4 |
Single head aseptic bag filling machine |
Equipment Name:Single-head sterile large bag filling machine Rated capacity: 3000 KG/H Filling range: 1 ~ 220L Filling energy: 220L 20 bags / hour Filling error: ±0.5% (flow meter) Compressed air: 20M3/Hour (0.6Mpa) Steam consumption: 20Kg (≥4kg/cm2) Lift: screw type Dimensions: 2200x2100x2600mm |
*The aseptic filling machine is directly connected to the sterilizer, and the UHT-sterilized product can be directly filled into a sterile bag. The aseptic bag is an aluminum-plastic composite multi-layer bag that effectively isolates sunlight and oxygen; maximizing product quality. *The temperature adjustment system automatically adjusts the temperature of the filling chamber, and uses the steam injection method to sterilize the bag mouth and the filling chamber. *The flow weighing system is used to control the quantitative filling, and the filling is more precise; *Mirror welding technology ensures smooth and flat welds without leaving a sanitary corner; *Product valves and moving parts of the filling head are protected by a steam barrier. *The filling chamber is steam sterilized; *The programmable controller is used to realize automatic operation of the device. |
Flow chart:
Fresh Kiwifruit - Bubble washing - Brush washing - Spray washing-Sorting - Lifting -Crushing - Double channel pulping - Buffer Storage - Tubular Sterilization - Aseptic Bag Filling
Question and answer:
1. Any guarantee of the machines?
-YES, one-year free maintenance.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.
Our Services Pre-Sales Service
1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.
After-Sales Service
1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
