Integrity-based, still respecting the virtues, committed to a long time
 |
| Place of Origin: | China (mainland) |
| Brand Name: | CFM |
| Certification: | CE/ISO9001 |
| Model Number: | CFM-B-04-6000 |
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 65 Work Days |
| Payment Terms: | T/T |
| Supply Ability: | 12 sets per year |
| Weight: | As Order | Type: | Blueberry Oral Liquidbeverage Line |
|---|---|---|---|
| Specification: | 30ml | Bottle Type: | Oral Solution |
| Automatic Grade: | Automatic | Feature: | Energy Saving |
| High Light: | beverage production equipment,beverage processing equipment |
||

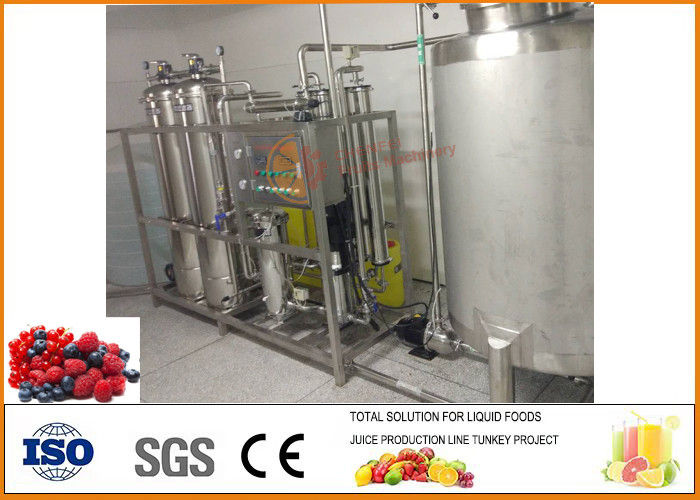

6000 bottles / 30ml blueberry oral liquid beverage production line per hour
Blueberry processing line quality assurance:
Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. Jujube. The core components of the processing line of hawthorn processing are basically imported or domestic first-line brands: so the quality and equipment stability are relatively high, and the service of Yufei Machinery has always been better in the industry
The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables;
Technical advantage
Taking into account the actual requirements of the customer's factory and the project equipment, the installation and positioning of the production line equipment adopts segmentation positioning, modular PLC automatic control, design layout according to the size and characteristics of the plant, ensuring the rationality of on-site construction and operation, and good On-site working environment; realizes compact layout of workshop equipment and wide space, achieving the economic and aesthetic design effect of modern production workshop;
Energy-saving design and recycling of thermal energy are considered in all production steps, which greatly reduces energy consumption and saves more than 35% of energy in the same industry. At the same time, the cleaning water in the pre-treatment process considers a certain recycling; Waste such as slag is directly excluded from the production workshop through the screw conveyor system.
Strictly follow the automation and standardization process to prevent product quality instability caused by human intervention. In each operation, the rationality and fluency of material operation are fully considered. Properly amplify the margin on the basis of meeting the contracted output, and maximize the function and function of each device, so as not to waste one device and not take a step.
The pipeline process is reasonable, the equipment configuration is high-end and practical, and the utilization rate is extremely high. At the same time, considering the maximum cost savings for customers, it is the basic design concept of the company.
Flow Chart:
Blueberry Concentrate - Homogenization - Filling ------ Rolling Cap - Sterilization - Air Drying - Labeling - Code - Box |
Oral liquid bottle cleaning - oral liquid bottle drying
Major equipment
| No | Name | Parameter Description |
| 1 | High pressure homogenizer | Rated flow rate: ≥500L/H Maximum working pressure: 100MPa Rated working pressure (pointer swing): ≤80MP CIP cleaning: <75° Feed pump pressure: 0.2-0.3 MPa Adapt to liquid temperature / viscosity: 100 ° C / ≤ 1000CP |
| 2 | Vertical ultrasonic cleaning (30ml) | Dimensions:2500 × 2400 × 1620mm (subject to the final plan determined by both parties) Weight :2300Kg Power :15.7kw Exhaust air volume 100 m3/h, full pressure 150-200Pa Purified water consumption 0.5m3/h, 0.2-0.3Mpa Compressed air consumption 30m3/h, 0.6Mpa |
| 3 | Oral liquid filling and capping machine (30ml) | Dimensions:3860×1190×1800mm (subject to the final plan determined by both parties) Weight :1500kg Power :17kw Number of needles: 5 Number of caps:1 Filling form peristaltic pump filling Filling accuracy :≤ ± 2% Rolling pass pass rate ≥99.6% electric heating tube: far infrared electric hot stone |
| 4 | Water bath sterilization and cooling machine | Size: 12000x14000x1200mm (l*w*h) The main structure is 304 stainless steel (including insulation) The machine adopts circulating hot water sterilization, circulating warm water pre-cooling, cooling water cooling, and low energy consumption. It is suitable for post-sterilization operation of tinplate, glass bottles and plastic bottled products of various sizes. It is conveyed by a rubberized stainless steel roller to prevent broken bottles. Continuous production, stepless speed regulation, arbitrarily adjust material sterilization time in the design interval. The equipment operates with low noise, accurate temperature control and automatic monitoring of sterilization temperature. |
Question and answer:
1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.
Our Services Pre-Sales Service
1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.
After-Sales Service
1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
