Integrity-based, still respecting the virtues, committed to a long time
 |
| Place of Origin: | China (mainland) |
| Brand Name: | CFM |
| Certification: | CE/ISO9001 |
| Model Number: | CFM-B-02-6000 |
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 65 Work Days |
| Payment Terms: | T/T |
| Supply Ability: | 12 sets per year |
| Place Of Origin: | Jiangsu,China(Mainland) | Type: | Beverage Processing Line |
|---|---|---|---|
| Warranty: | 360days | Driven Type: | Electric |
| Automatic Grade: | Automatic | Feature: | Energy Saving |
| High Light: | beverage production line,beverage processing equipment |
||

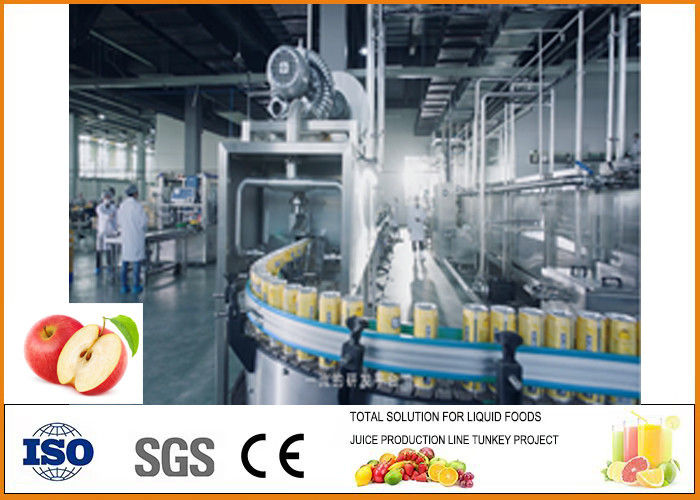

Apple pear 6,000 bottles of cans beverage production line per hour
Apple ,pear processing line quality assurance:
Chenfei Machinery Vision is committed to building a world-renowned enterprise in the world's food, fruit and vegetable, dairy, beverage equipment production line turnkey project overall solution. Jujube. The core components of the processing line of hawthorn processing are basically imported or domestic first-line brands: so the quality and equipment stability are relatively high, and the service of Yufei Machinery has always been better in the industry
The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables;
Technical advantage
Taking into account the actual requirements of the customer's factory and the project equipment, the installation and positioning of the production line equipment adopts segmentation positioning, modular PLC automatic control, design layout according to the size and characteristics of the plant, ensuring the rationality of on-site construction and operation, and good On-site working environment; realizes compact layout of workshop equipment and wide space, achieving the economic and aesthetic design effect of modern production workshop;
Energy-saving design and recycling of thermal energy are considered in all production steps, which greatly reduces energy consumption and saves more than 35% of energy in the same industry. At the same time, the cleaning water in the pre-treatment process considers a certain recycling; Waste such as slag is directly excluded from the production workshop through the screw conveyor system.
Strictly follow the automation and standardization process to prevent product quality instability caused by human intervention. In each operation, the rationality and fluency of material operation are fully considered. Properly amplify the margin on the basis of meeting the contracted output, and maximize the function and function of each device, so as not to waste one device and not take a step.
The pipeline process is reasonable, the equipment configuration is high-end and practical, and the utilization rate is extremely high. At the same time, considering the maximum cost savings for customers, it is the basic design concept of the company.
Flow Chart:
Aseptic Filling-Pump-Blending System{RO water/Sugar soluble system} - Filltering -Degasser - Homogenizer - UHT Sterilizer - Cans Filling
Major equipment
| No | Name | Parameter Description |
| 1 | Empty can feeding and washing machine | Processing capacity: 200-400 cans / minute Power: 2.6kw Weight: 2500kg Size: 7500mm × 4500mm × 3500mm (length * width * height) |
| 2 | Filling and capping machine | Size: 2200x1600x1900mm (l*w*h) Weight: 2500kg Number of filling heads: 12; number of cans: 4 Filling speed: 6000~9000 cans/hour (250-330g) Filling accuracy: ≤±1% Filling amount: according to customer requirements Power : 1.5kw Air pressure : 0.6-0.8MPa Imported parts for core components |
| 3 | Vacuum online leaking machine | The vacuum leak detector uses acoustic technology, non-contact online detection, and speeds of 300 bottles per minute. Used to detect the sealing performance of containers, including leak detection, vacuum testing, empty cans. Applicable to three-piece cans, three-four screw caps, and metal anti-theft caps. Detect unqualified products and automatically reject them. |
| 4 | Inkjet printer | Size: 600*468*300mm (l*w*h) Print tube length: 3 meters Voltage: 220V 400*600*800mm double stainless steel platform |
Question and answer:
1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.
Our Services Pre-Sales Service
1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.
After-Sales Service
1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
