high quality SS304 Fruit And Vegetable Juice tube in tube Sterilizing Machine

high quality SS304 Fruit And Vegetable Juice tube in tube Sterilizing Machine

high quality SS304 Fruit And Vegetable Juice tube in tube Sterilizing Machine

Product Details:

Place of Origin: Jiangsu
Brand Name: CFM
Certification: ISO9001
Model Number: CFI1LW00TA

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Plastic film and wooden Case
Delivery Time: 40-60 Work Days
Supply Ability: 1-2/Pieces/Day
Contact Now
Detailed Product Description
Product Name: Juice Tube In Tube Sterilizing Machine Automation: Full-Automatic
Processing Types: Beverage And Milk Sterilizer FeaturesFeaturesFeatures: Complete Sterilization
Size: Depends On The Capacity Material: SS304
Feature: Full-Automatic,Energy Saving And Easy Operation
High Light:

sterilization system

,

uht sterilization machine



high quality SS304 Fruit and vegetable juice sterlizing machine



Equipment demand parameter

Production

(daily production, 24 hours production)

250
Sterilization time ≥15 minutes
Sterilization temperature

≥92°C, heat preservation ≥85, ≥15 minutes

Cooling temperature

<40 ° C

Size

36000x2700x1600mm (L*W*H)

Tank size

3kg=φ150*170mm

4.5kg=φ150*240mm


Specifications:

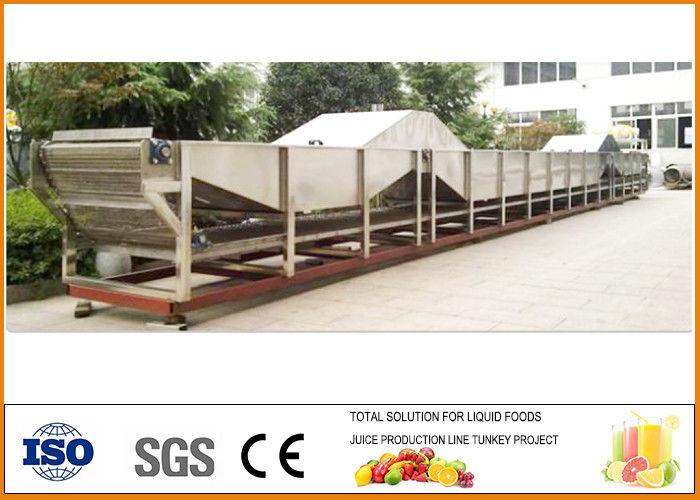

     Made of SUS304 material, the main components are composed of conveying scraper, machine body, pipeline system, electric control system, etc. The chain rotates the spindle to transport the material to the specified position, and the speed can be controlled by frequency conversion, and the sterilization time can be adjusted arbitrarily. This equipment is mainly used for the sterilization of PE/PP plastic bottles and jelly.



Competitive Advantages:

  • The sterilization method can be selected according to different packaging materials.
  • High degree of automation and high control accuracy.
  • Uniform heat distribution, in line with FDA requirements.
  • It can be prepared by the temperature probe to realize automatic detection and calculation of F value.
  • It has strong adaptability and can be processed in multiple stages according to different food processing techniques. The whole process can be completed in 20 steps.
  • More than 500 sterilization formulas can be stored.

Question and answer:
1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.


Our Services Pre-Sales Service
♦ We would like to supply you all the details you need.
♦Provide drawings according to your requirements after we get your company information.
♦ Make customized products according the drawings.


After-Sales Service
1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.

3.* If necessary,our technicians can go to debug the machine with air                                              ticket,visa,accommodation and labor       cost provided by your party.
4. *You can consult any relevant questions by phone,E-mail and communicate online
.



The company:

    Shanghai ChenFei Machinery Technology Co., Ltd. is committed to food, fruits and vegetables, dairy products, beverage etc. production line turnkey project overall solution. ChenFei is widely praised in the industry, especially for R &D, technology innovation and energy saving optimization revamp practice and experiences. Production equipments for processing tomato sauce, apple, pear, peach, pear, seed melon, yam and lee, etc. are best-selling in China and exported to Southeast Asia, Africa, the Middle East, Eastern Europe and other countries and regions. ChenFei has won consistent high praise from the domestic market, Europe, the Americas, Africa, Southeast Asia and other countries and regions.
