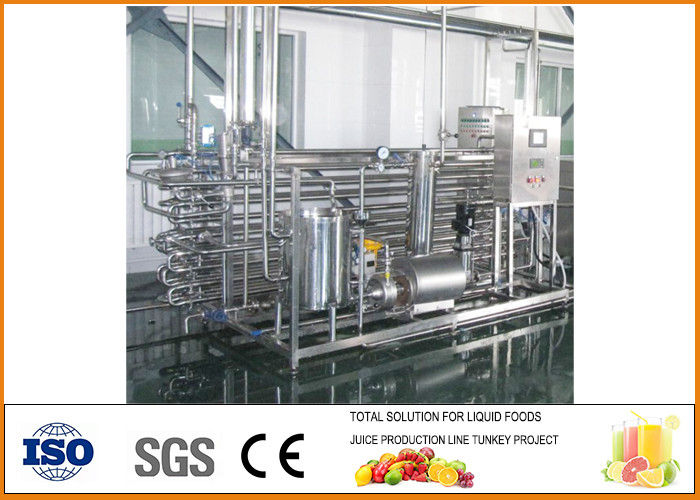

3T/h SS304 Fruit and vegetable juice Tubular UHT Sterilizing Machine

3T/h SS304 Fruit and vegetable juice Tubular UHT Sterilizing Machine

3T/h SS304 Fruit and vegetable juice Tubular UHT Sterilizing Machine

Product Details:

Place of Origin: Jiangsu
Brand Name: CFM
Certification: ISO9001
Model Number: CFI1LG3TA

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Plastic film and wooden Case
Delivery Time: 40-60 Work Days
Supply Ability: 1-2/Pieces/Day
Contact Now
Detailed Product Description
Product Name: UHT Sterilizer Application: Food Industrial
Advantages: Full-Automatic,Energy Saving And Easy Operation Material: 304 /316stainless Steel
FeaturesFeaturesFeatures: Complete Sterilization Size: Depends On Each Machine
High Light:

sterilization equipment

,

uht sterilization machine



3T/h SS304 Fruit and vegetable juice Tubular UHT Sterilizing machine



Technical Parameters

Model

CFI1-LG-3T

Power (KW)

7.4

Dimensions (m x m x m)

4.5x2.2x1.9

Steam consumption(kg/h) 360
Capacity (T) 3


Specifications:

     Automatic ultra-high temperature tubular UHT sterilizer is designed and produced absorbing in foreign advanced technology and adopting many years’ experience. It is widely used for the sterilization of fruit juice, tea drinks, milk and virgin pulp and other liquid food. The control system adopts the visible control interface, it is convenient to know the status of the operating component. We use the branded components and electric control system for this sterilizer. It has the advantages of easy to clean, compact structure designed and working stability.

    The ultra-high temperature sterilizer is able to do the heating, heat preservation, heat recycling and cooling work through many sections at the same time. The heat could be recycled during the pre-heat and sterilization time fully. The heat could be automatically controlled during the whole sterilization process. The customer could control the heat by themselves according to their own requirement as well.



Competitive Advantages:

  • 304 Stainless main body structure.
  • Sterilization thoroughly and low energy consumption.
  • There is protection for all the connected part from the steam.
  •  Working stability and easy operation.
  • Separate controller and PLC control panel.
  • Able to accept the CIP and SIP cleaning with the aseptic filling machine at one time.

Property description

Model CFM-UHT-PP1.5 CFM-UHT-PP3 CFM-UHT-PP5
Capacity(L/H) 1500 3000 5000
Inlet temperature(℃) 25-40℃ 25-40℃ 25-40℃
Holding Time(s) 120-180 120-180 120-180
Sterilizing temperature(℃) 95-121℃ 95-121℃ 95-121℃
Outlet temperature(℃) 25-35℃ 25-35℃ 25-35℃
Cooling water T(℃) 30℃ 30℃ 30℃
Steam pressure 0.5MPa 0.5MPa 0.5MPa
Steam consumption `150Kg/h `210Kg/h `280Kg/h
Compressed air pressure 0.6MPa 0.6MPa 0.6MPa
Compressed air consumption 50L/H 50L/H 60L/H
machine size(LxWxH) 7000x2000x2000 7000x2000x2000 7000x2000x2000
Weight 1700kg 2000kg 2200kg



Question and answer:
1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.


Our Services Pre-Sales Service
1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.


After-Sales Service
1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.



The company

    Shanghai ChenFei Machinery Technology Co., Ltd. is committed to food, fruits and vegetables, dairy products, beverage etc. production line turnkey project overall solution. ChenFei is widely praised in the industry, especially for R &D, technology innovation and energy saving optimization revamp practice and experiences. Production equipments for processing tomato sauce, apple, pear, peach, pear, seed melon, yam and lee, etc. are best-selling in China and exported to Southeast Asia, Africa, the Middle East, Eastern Europe and other countries and regions. ChenFei has won consistent high praise from the domestic market, Europe, the Americas, Africa, Southeast Asia and other countries and regions.
