| Place of Origin: | China (mainland) |
| Brand Name: | CFM |
| Certification: | CE/ISO9001 |
| Model Number: | CFM-A-02-354-303 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 150 Work Days |
| Supply Ability: | 12 sets per year |
| Condition: | New | Place Of Origin: | China(Mainland) |
|---|---|---|---|
| Warranty: | 1Year | Item: | Automatic Apple Processing Line |
| Feature: | Energy Saving | After-sales Service: | Engineers Can Go Overseas For Installation |
| Capacity: | 20T/H | Juice Yield: | 75% Rate |
| High Light: | apple juice processing plant,apple juicing equipment |
||
20T/H Apple Juice Production Line SUS304 Machinery
Technical Parameters
| Raw material | Fresh apple |
| End products | Concentrate or clear juice |
| Capacity | 20T/H |
| Juice yield | 75% (25% fruit fiber, peel and core) |
| Solid content | 10-12Brix |
| Concentrated juice concentration | 70~72Brix |
| Product packaging | Sterile large bag / cans / glass bottles / PET bottles |
| Yield | Customized according to customer needs |
Features:
1.The processing capacity is varied from 60 tons/day to 2000 tons/day.
2.The line Can deal with similar characteristics of fruits.
3.Automatic disinfection liquid concentration control system, effectively guarantee the sterilization effect and control the disinfection residue
4.Efficient crusher improved the high output percentage of apples and pears

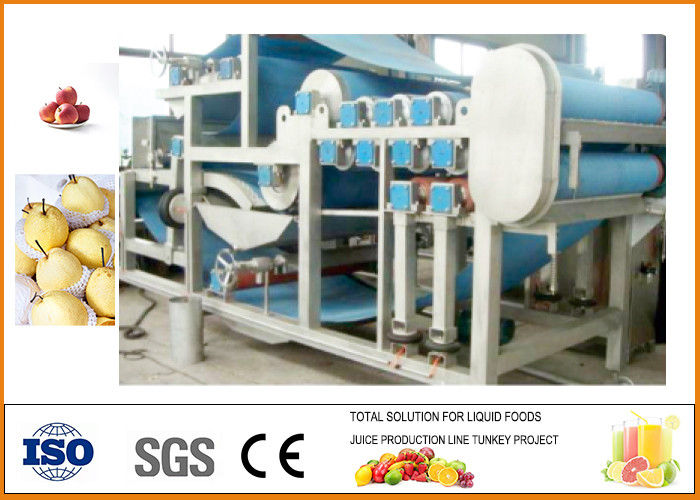

5.Using efficient belt juice extractor to improve the juice efficiency and the output percentage
6.The production process fully automatic PLC control to reduce the labor intensity and Improve production efficiency
7.Low-temperature vacuum evaporation Greatly reduce the flavor substances and nutrient losses
8.A variety of energy recovery measures , increased the energy utilization and greatly reduce production cost
9.Tubular UHT sterilizer and Aseptic filling machine, Isolated from the pollution of bacteria,ensure the safety of the food and extend the shelf life of the product
10.A complete set of production with self CIP system reduce the labor intensity and ensure the high level sanitation.
Quality assurance:
Chenfei Machinery is committed to building the world-renowned enterprise in the world's food, fruit and vegetable, dairy and beverage turnkey production project solution. The core components of the apple processing line are basically imported or domestic first-line brands, so Chenfei’s processing machines keep the high quality and stability , they also has the good reputation of their after-sales service.
The 304 pipes we use for the pipeline is from Yuan'an, the cables are all good cables;
Technical advantage:The apple/pear processing line will be a bottled juice product after the fresh apple/pear has been floated, crushed, juiced, hydrolyzed, ultrafiltered, concentrated, sterilized, and filled. The entire line is designed for apple/pear juice according to international quality standards.
1.Cleaning and picking: use part of the fruit that does not meet the requirements to transport to the designated location through the middle, reducing labor
2.Broken: The apple/pear granules are refined by hammer breaking, and the crushing process is protected by nitrogen gas
3.Juice extraction: Juice is extracted by a special process-adjusted juicer to increase the juice yield
4.Sterilization: through UHT instant sterilization technology, under the condition of retaining the color and taste of juice, through sterilization
5.Aseptic filling: storage in sterile large bags to improve the shelf life of the juice
Question and answer:
1. Any guarantee of the machines?
-YES, one-year free maintenance and life time paid service.
2. Can you do the OEM design for customers?
-YES. We could design the capacity, color, mark, Shape and so on according to the customer's requirement.
3. What is the package of the machines?
-The machines will be wrapped with plastic film and put in wooden cases.
4. Shipping port?
-Shanghai.(Other ports available if required)
5. Transportation
-Shipping by sea. Air available if required by customer.
Our Services Pre-Sales Service
1.* Inquiry and consulting support.
2.* Sample testing support.
3.* Visit our Factory.
After-Sales Service
1.* Training how to install and use the machines.
2.* Engineers available to provide the technique help if necessary.
