small capacity 500kg/h Fruit And Vegetable Juice Tubular UHT Sterilizating Machine

small capacity 500kg/h Fruit And Vegetable Juice Tubular UHT Sterilizating Machine

    • small capacity 500kg/h Fruit And Vegetable Juice Tubular UHT Sterilizating Machine
    • small capacity 500kg/h Fruit And Vegetable Juice Tubular UHT Sterilizating Machine
    • small capacity 500kg/h Fruit And Vegetable Juice Tubular UHT Sterilizating Machine
    • small capacity 500kg/h Fruit And Vegetable Juice Tubular UHT Sterilizating Machine
  • small capacity 500kg/h Fruit And Vegetable Juice Tubular UHT Sterilizating Machine

    Product Details:

    Place of Origin: Jiangsu
    Brand Name: CFM
    Certification: ISO9001
    Model Number: CFI1LG3TA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: Plastic film and wooden Case
    Delivery Time: 40-60 Work Days
    Supply Ability: 1-2/Pieces/Day
    Contact Now
    Detailed Product Description
    Product Name: Tubular UHT Sterilizer Capacity(L/H): 500kg/h
    Inlet Temperature(℃): 25-40℃ Material: 304 Stainless Steel
    FeaturesFeaturesFeatures: Complete Sterilization Packing: Plastic Film And Wooden Case
    High Light:

    sterilization equipment

    ,

    sterilization system

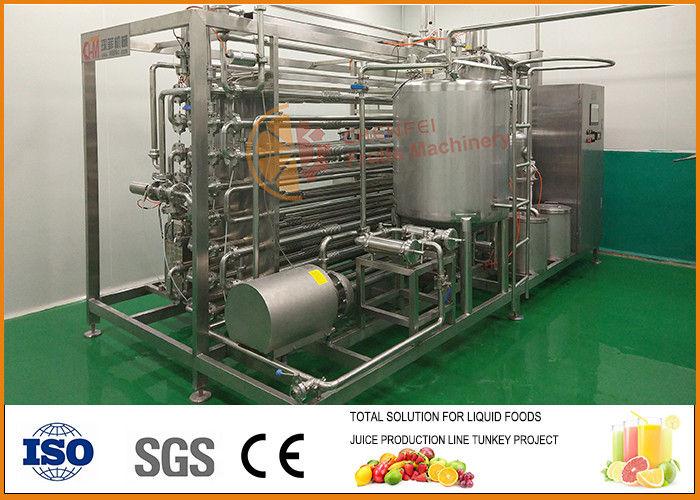

    Small capacity Fruit and vegetable juice Tubular UHT Sterilizating machine

    Specifications:

         Automatic ultra-high temperature tubular UHT sterilizer is designed and produced absorbing in foreign advanced technology and adopting many years’ experience. It is widely used for the sterilization of fruit juice, tea drinks, milk and virgin pulp and other liquid food. The control system adopts the visible control interface, it is convenient to know the status of the operating component. We use the branded components and electric control system for this sterilizer. It has the advantages of easy to clean, compact structure designed and working stability.

        The ultra-high temperature sterilizer is able to do the heating, heat preservation, heat recycling and cooling work through many sections at the same time. The heat could be recycled during the pre-heat and sterilization time fully. The heat could be automatically controlled during the whole sterilization process. The customer could control the heat by themselves according to their own requirement as well.



    Competitive Advantages:

    • 304 Stainless main body structure.
    • Sterilization thoroughly and low energy consumption.
    • There is protection for all the connected part from the steam.
    •  Working stability and easy operation.
    • Separate controller and PLC control panel.
    • Able to accept the CIP and SIP cleaning with the aseptic filling machine at one time.

    Feature:

    Model CFI1LG3TA-PP1.5
    Capacity(L/H) 1500
    Inlet temperature(℃) 25-40℃
    Holding Time(s) 120-180
    Sterilizing temperature(CC 95-121℃
    Outlet temperature(C) 25-35℃



    Material 304 stainless steel/316 stainless steel.
    1. ) High heat effect, low energy consumption.
    2. ) Full automatic process,CIP cleaning.All connection with steam protection.
    3.) Sterilization is stable and operation is simple
    4. ) Independent control cabinet, HMI PLC control.



    After-sale service
    1. One year warranty time except the easy-damaged parts.

    2. The lifelong maintenance,only charge material fee.
    3. Retraining the operator by making normative commissioning procedure for equipment,             enable it parameterization and standardization to up to the production conditions reasonable
